Tuningsworld Subframe Reinforcement Repair Kit — E46 3 Series
by Tuningsworld
Key Features
- 12-gauge steel reinforcement plates weld directly over cracked subframe mounting points
- Includes two 16-gauge 3" x 3.5" plates for trunk floor patching if secondarily damaged
- Fits all E46 3 Series variants: 316i through 330i, model years 1997–2006
- Eliminates chassis flex, clunking, and noise caused by subframe cracking
- Complete kit reduces sourcing time versus buying individual patch materials separately
- Backed by unlimited technical support and customer service from Tuningsworld
Product Details
- Brand
- Tuningsworld
- Part #
- GMAM60
- Category
- Subframe & Reinforcement
- ASIN
- B07KT53T9K
Tuningsworld Subframe Reinforcement Repair Kit — E46 3 Series — Overview

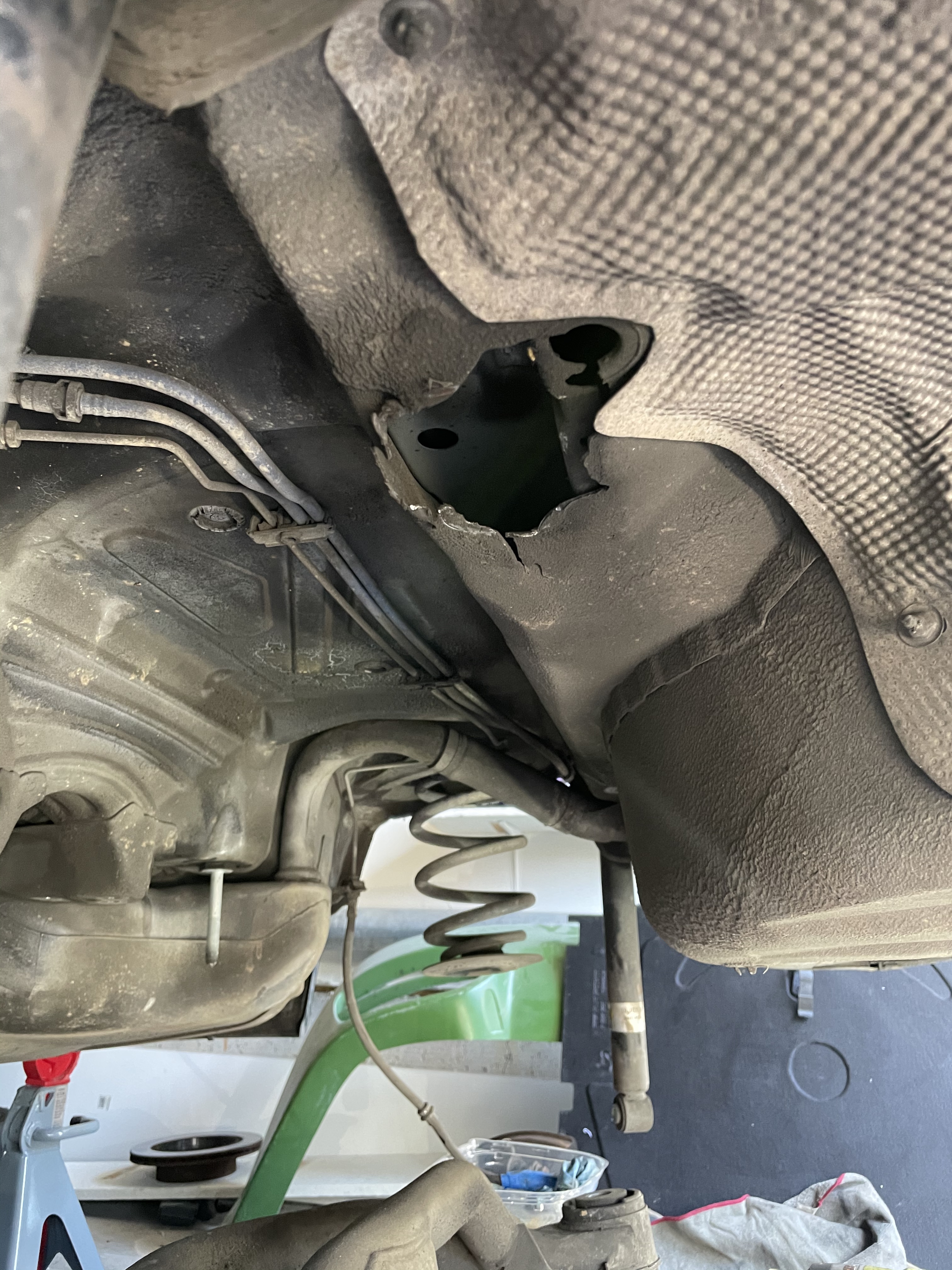

The E46 subframe crack is one of the most well-documented structural failures in BMW ownership — and one of the most consequential if left alone. As the subframe mounting points deteriorate, you'll notice increasing chassis flex, persistent clunking under load, and handling that feels progressively less precise. The Tuningsworld Subframe Reinforcement Repair Kit gives you the exact materials needed to weld the problem shut for good, covering every E46 3 Series variant from the 316i to the 330i across the full 1997–2006 production run.
The core of the kit is a set of 12-gauge steel reinforcement plates engineered to weld directly over the cracked mounting area, rebuilding structural integrity at the point of failure rather than masking symptoms. Two additional 16-gauge plates measuring 3" x 3.5" are included specifically to address trunk floor damage — a secondary issue that frequently appears when the original cracking has been allowed to propagate over time. Having both gauges in one package means you're not making multiple orders or improvising with off-spec material.
This is a repair best suited for experienced DIYers or professional shops comfortable with MIG or TIG welding on unibody steel. Proper surface preparation — cleaning back to bare metal, removing undercoating, and ensuring full weld penetration — is essential for a lasting fix. Tuningsworld supports that process with unlimited technical assistance, so you're not working blind if questions come up mid-job.
Whether you're extending the life of a high-mileage daily driver or preserving a clean E46 for weekend and track use, this kit delivers structurally appropriate, correctly gauged materials at a price that makes a proper repair accessible without resorting to a full subframe replacement.
