Best Speaker Upgrade for BMW - Focal, Hertz, Morel Compared

BMW sells the option code, not the music. I've had that line scribbled on a shop whiteboard for about a decade, because every time a customer rolls into my bay and says "my stereo sucks, I paid for Harman Kardon, what gives", the answer is some variant of the same reality - you didn't buy a reference system, you bought a nameplate glued to a tier that BMW engineered to be just-good-enough to justify the upsell over base. HiFi is fine. HK is better than HiFi. Neither is audiophile. The only factory system I will not touch on any BMW I work on is the Bowers and Wilkins Diamond Surround, because that one was actually built to reference standards and anything you do to it is a downgrade.

I'm Kamil, I've been wrenching on BMWs for five years, I daily a G20 330i with the HiFi option, and I've installed somewhere around two hundred aftermarket audio setups across E46, E60, E90, E92, F10, F30, F32, F15, G20, G30, and G05 chassis. The short version of this guide is that the single best speaker upgrade for 90% of BMW owners is a Bavsound Stage One kit on a HiFi S676A car, installed in under three hours with a torx driver and no coding. The long version is everything below - factory tier decoding, MOST bus explained, speaker sizes by chassis, when to keep the factory amp and when to bypass it, the four brands that actually matter (Bavsound, Focal, Morel, Audison), and four budget tiers from a $400 DIY to a $5,000 audiophile build that beats the B&W Diamond on fidelity.

If you skim one section, make it the factory tier decoder. If you have a Logic 7 E90 or a HK F10 with MOST bus, you are in a different game than an F30 HiFi owner, and buying the wrong kit is the most common mistake I see on forums. Let's get into it.

The Factory BMW Audio Reality - What You Actually Paid For

BMW has sold four rough audio tiers for the last 25 years. The option codes shift between generations, the speaker counts creep up, and the marketing gets flashier, but the engineering philosophy stays consistent - each tier exists to be measurably better than the one below it without eating into the margin on the next one up. That is why HiFi sounds better than base, HK sounds better than HiFi, and why nobody outside of a handful of flagship chassis gets a system that would compete with a $2,000 aftermarket build.

Tier 1 - Base System

Base is what you get if you did not tick any audio option on the build sheet. Six to eight speakers, paper cone midranges, no dedicated amp beyond what's wired into the head unit, and a total RMS output that wouldn't drive a bedroom bookshelf speaker to party volume. Every E-chassis, F-chassis, and G-chassis has one. If your car has base, the upgrade conversation is not whether to do it, it's what to do. Any aftermarket plug-and-play kit will be a transformation.

Tier 2 - HiFi (S676A)

HiFi is the most common mid-tier option code and it has been for over a decade. On an F30 or G20 you're looking at roughly 10 speakers - 4 door midranges, 3 or 4 tweeters, 2 under-seat woofers - driven by a real amp pushing around 205 watts total. The HiFi amp is not special but it is competent, and this is the tier where a Bavsound Stage One speaker swap gives you the biggest audible lift per dollar. The amp can drive better speakers cleanly, the DSP curves are moderate, and the install is plug-and-play.

Tier 3 - Premium HiFi

This tier has two names depending on which chassis you're on. On older E-chassis (E60, E63, E90, E92, some late E46) it was Logic 7, often coded S677A. 13 channels, 4 tweeters, 7 midranges, 2 under-seat subs, a 9-output amp pushing 420 watts on paper. The catch on Logic 7 is that it uses the MOST optical bus, which I'll unpack further down, and the amp's DSP curve is aggressive. On F-chassis and G-chassis the premium tier is Harman Kardon, coded S688A. 16 speakers, 600 watts on F-chassis, 464 watts on G20, more on G30. The HK amp is non-MOST on most trims, which actually makes it easier to work with than Logic 7.

Tier 4 - Flagship Systems

Bowers and Wilkins Diamond Surround is the only factory system I consider genuinely audiophile. It's coded S6F2A, costs $3,400 to $4,900 as an option, and shows up on G30 5er, G05/G06/G07 X5/X6/X7, G11/G12 7er, and G14/G15/G16 8er. 20 speakers, 1,400 to 1,500 watts, diamond Nautilus tweeters, aluminized Kevlar midranges, Rohacell bass subs. If you own one of these, don't touch it. Seriously. Add $300 of door sound deadening and you've unlocked the last 10% of what the system can do. Everything else is a downgrade.

Bang and Olufsen was the predecessor flagship on pre-2013 F01 7er and F10 5er. Ceramic tweeters, extending center channel, 1,200 watts. Still excellent in 2026 if you have one. Older Individual Audio on E65 and E38 7ers is rarer and less impressive than its marketing suggested. Both of these are treated the same as B&W in my shop - leave them alone unless you're doing a full tier-D competition build.

Identifying Your Car's Audio Option Code

Before you spend a dollar on speakers, you need to know exactly what tier you have. Guessing based on how the car sounds is how people end up buying F30 Bavsound kits for their G20 and discovering the mounts don't fit. Two ways to check.

Method One - The Window Sticker or Build Sheet

Go to a BMW VIN decoder like bimmer.work or the BMW owner portal and punch in your 17-digit VIN. Scroll to the option codes. You're looking for S676A for HiFi, S677A for Logic 7 or Top HiFi, S688A for Harman Kardon, or S6F2A for Bowers and Wilkins. If none of those appear, you have base. Other audio-related codes worth noting are S673A (market-specific base audio in some regions) and S674A (the older E46 HK code).

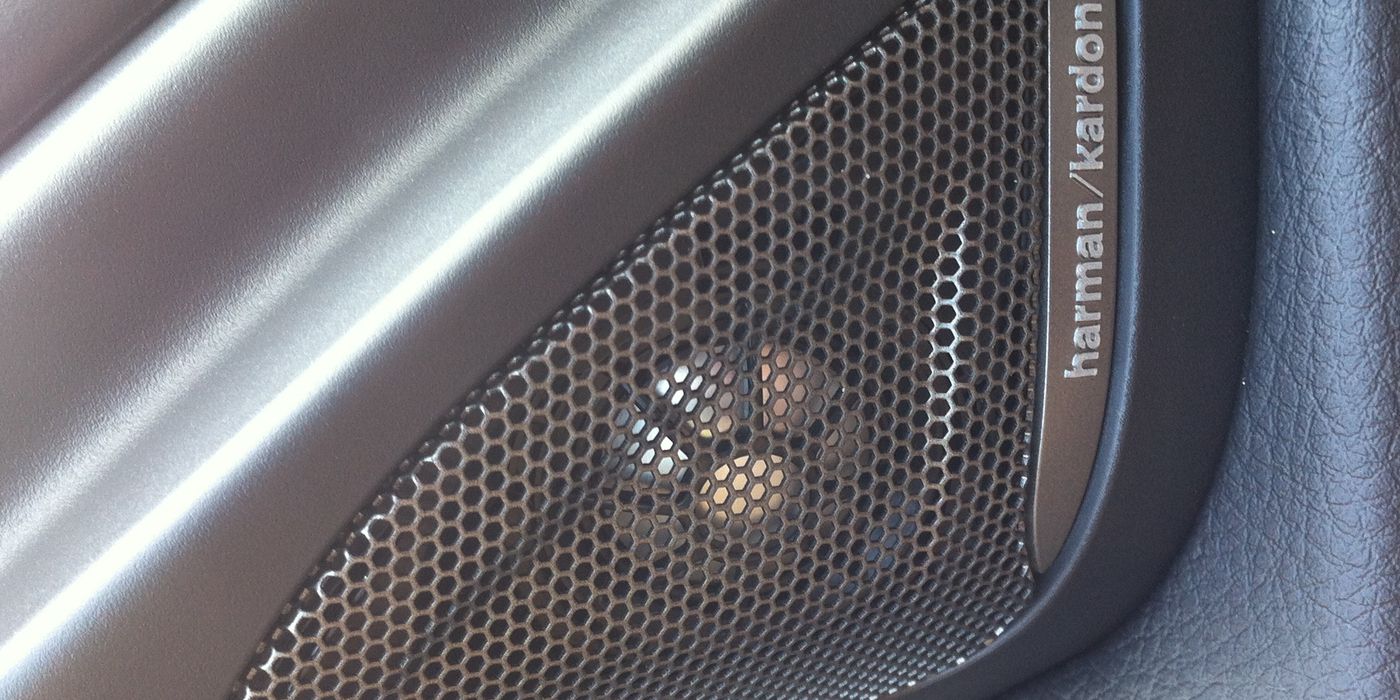

Method Two - Visual Inspection

Pop the driver door open. Look at the tweeter housing near the mirror triangle. Base systems often have no tweeter or a small plain grille. HiFi and HK systems have a branded grille. HK has the "Harman Kardon" logo printed on the tweeter grille or the amp cover. B&W has a distinct silver-rimmed tweeter grille with the B&W logo on each driver. If you see anything labeled "Bang and Olufsen" on the door or dashboard, you have the old flagship and should treat it like B&W.

Method Three - The Amp Location

Non-amp systems have nothing in the trunk area. HiFi, HK, and Logic 7 systems all have a dedicated amp mounted in the trunk or the rear panel. On F30 and G20 it sits behind the right rear trunk liner. On F10 and G30 it's behind the left trunk panel. On F15 and G05 it's in the cargo area sidewall. If there's a separate amp unit with BMW-branded labels, you're tier 2 or tier 3. If the amp is a sealed silver Class-D unit with the B&W or HK Diamond markings, that's flagship.

Amp Retention Versus Amp Bypass - The Core Decision

This is where most BMW audio articles go vague and where most DIY builds go sideways. The question is not "should I get better speakers", it's "am I keeping the factory amp in the chain or replacing it". Those are two fundamentally different projects and the wrong choice costs you money.

When Amp Retention Works

Retention (keeping the factory amp) is the correct path if you are on a base or HiFi system and you want meaningful improvement without a full rebuild. Bavsound Stage One, Focal IS BMW kits, and similar plug-and-play speakers are engineered specifically to be driven by factory amps. They're voiced to absorb the factory DSP curve, they match factory impedance, and they land in the same mounting points with the same connectors. You unplug the old driver, plug in the new one, reinstall the panel, done.

HK retention is a bit more nuanced. The HK amp pushes more power and applies a more aggressive DSP curve, and some aftermarket speakers don't sit cleanly under that curve. Bavsound and Focal both build HK-specific kit variants for this reason. If you have S688A HK, check that the kit you're buying is explicitly listed for HK-amped cars, not just HiFi.

When Bypass Becomes Mandatory

Bypass (removing or disabling the factory amp and replacing it with an aftermarket DSP amp or a DSP plus a separate amp) becomes the right answer in three scenarios. First, when you want to run real aftermarket amplification like an Audison AP BIT, Helix M Four, or JL Audio XD series. Factory amps cannot output the clean voltage these units expect as input, and the factory EQ will fight your new DSP. Second, when you want to fix the factory DSP entirely. Logic 7 and HK both run low-frequency roll-offs and phase tricks that sound wrong once better speakers are in the cabin. Third, when you want a real subwoofer with proper amplification, because nothing below B&W Diamond has a dedicated sub output with meaningful power.

The MOST Bus Problem

MOST stands for Media Oriented Systems Transport. It's a fiber-optic digital audio network BMW used on Logic 7 cars (late E46, E60, E63, E65, E90 Logic 7, E92 Logic 7), some F-chassis with S677A (F01 7er, some F10 Top HiFi, some F15 with HK variants). If your car has MOST, the signal from head unit to amp is digital fiber, not analog copper wire. You cannot tap a line-level signal off the wiring harness because there is no line-level signal on the harness.

Three ways to handle MOST. Option one is a MOST adapter like the Mr12Volt interface or an Alpha One module that converts the optical stream to analog RCA outputs for an aftermarket amp or DSP. Option two is a high-level tap at the factory amp's speaker outputs, using a line-output converter to rebuild a line-level signal from the amplified output - this preserves chimes and fade but you're re-converting amplified audio which compromises purity. Option three, and usually the cleanest answer, is a full factory amp replacement with a MOST-compatible unit like the Audison APBMW ReAMP series or the MATCH UP 7BMW. These plug into the factory MOST connector and give you 7 or 8 channels of DSP amplification already set up for bypass.

Non-MOST cars (all base, HiFi on most chassis, most G-chassis with Ethernet-based audio) are easier. A TechnicPNP or similar plug-and-play high-level harness drops into the factory amp connector and gives you four to six RCA outputs to feed an aftermarket amp or DSP. No fiber optics, no MOST interface, no coding required.

ASD Bypass - The Step Everyone Forgets

F-chassis and G-chassis with Active Sound Design pump synthesized engine noise through the audio system. If you replace the factory amp without intercepting the ASD module, one of two things happens. Either your car goes completely silent on synthesized engine sound (some people love this), or your new amp gets fed the ASD signal mixed in with music and you can't separate them. The correct fix is the Audison AP H ASD BYPASS harness, which intercepts the ASD module cleanly and routes it independently. $80 to $130 part, installs in 20 minutes alongside the amp swap. Skip this and every DIY build I've seen ends in a forum post asking why the engine sound disappeared.

Speaker Size Matrix by BMW Chassis

BMW has been remarkably consistent on speaker sizes at each tier over the last 20 years. 100mm midranges, 25mm tweeters, and 200mm to 217mm under-seat subs are near-universal. What changes between generations is the mounting geometry, the connector style, and the basket shape. That is why BMW-specific kits from Bavsound, Focal, and Audison exist and why a generic 4-inch aftermarket speaker doesn't just drop in.

E46 (1999 to 2006)

Base E46 runs 4 doors of 6.5-inch midbass plus 2 tweeters. HK (S674A) runs 10 speakers - 4x 6.5-inch, 4x 1-inch tweeter, and 2x 8-inch under-seat. Critical E46 note: the foam surrounds on the factory HK speakers rot after 10 years. If you own an E46 with HK and you haven't replaced them yet, they are failing or already failed. Do not buy OEM replacements because you're just resetting the clock on the same failure. Go Bavsound or Focal.

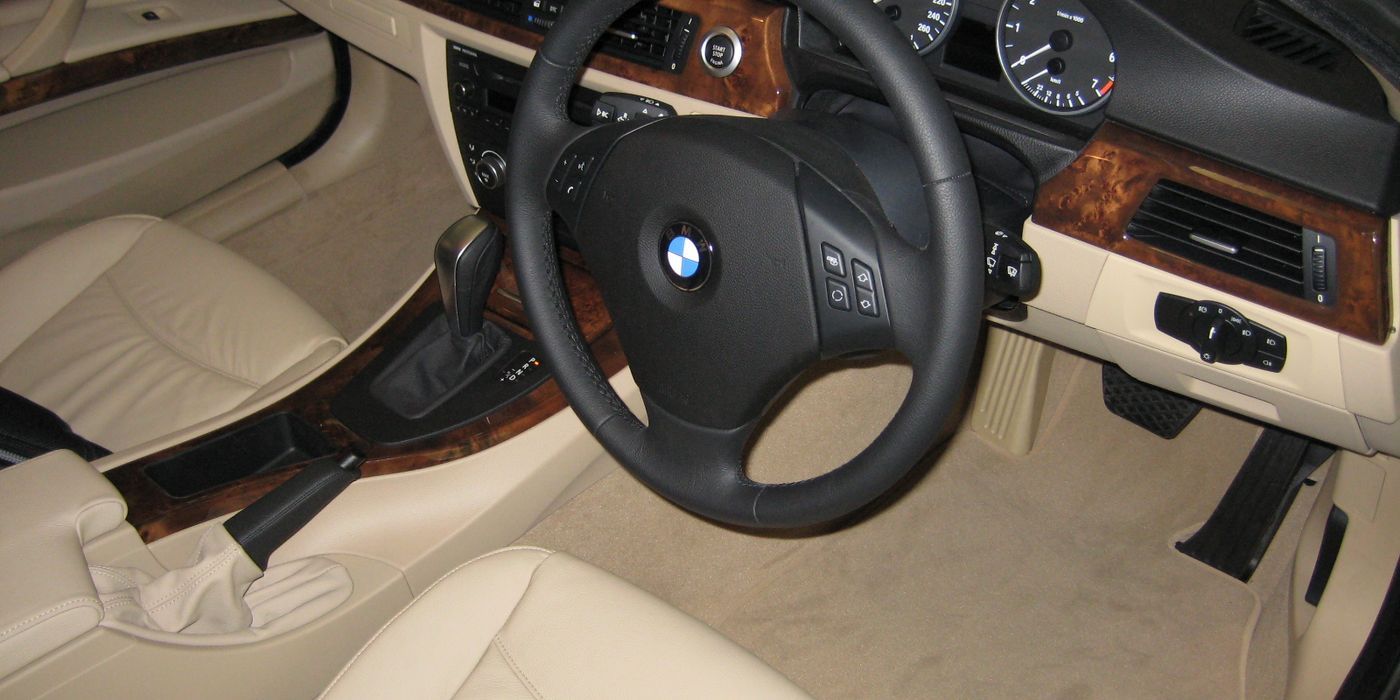

E60 and E90 Logic 7

Logic 7 on E60 and E90 runs 13 speakers - 4x 41mm tweeters, 7x 100mm midranges, 2x 8.5-inch under-seat subs on E60 or 8-inch on E90. MOST bus. 420 watts on paper, but forum consensus is that it distorts at the top third of the volume knob and the DSP curve is aggressive. This tier benefits dramatically from either a full amp bypass with a Helix DSP and aftermarket amp, or a plug-and-play replacement like the Audison APBMW ReAMP. Keeping the factory Logic 7 amp and just swapping speakers is the worst of both worlds - you spend $500 on Bavsound and the amp is still the bottleneck.

F30 and F32 HiFi or HK

F30 HiFi runs 10 speakers, 5 midranges, 3 tweeters, 2 under-seat woofers. F30 HK runs 16 speakers - 7 midranges, 7 tweeters, 2 under-seat woofers. Non-MOST on nearly all trims, which simplifies everything. Plug-and-play kits work beautifully here. Bavsound F30 Stage One kits fit cleanly and the amp (both HiFi and HK) drives them well. The F30 generation is the sweet spot for simple upgrades.

G20 HiFi or HK

G20 runs the same 10-speaker HiFi and 16-speaker HK topology as F30 but with entirely new mounting points. G20 HK uses 8-ohm under-seat subs instead of 4-ohm. F30 Bavsound kits do not fit G20 and F30 under-seat subs do not fit G20. I see this mistake every couple months in the shop - someone buys a used F30 kit, tries to install it in their G20, nothing lines up, they blame the kit.

F15 X5 and G05 X5

F15 HK runs 16 speakers with a center dash mid and rear D-pillar mids in addition to the door and under-seat drivers. G05 uses similar topology with updated DSP. F15 owners report being more satisfied than G05 owners at the HK trim level - forum hypothesis is that BMW cheapened cone material on G05. Either way, both respond well to a Bavsound Stage One swap or a Focal IS BMW 100K installation.

Bavsound Stage One - The Plug-and-Play Winner

Bavsound has been BMW-only since 2010 and they've built their entire business around one product philosophy - an OEM-connector plug-and-play speaker kit that any owner with a torx driver can install in an afternoon and that voices well under the factory amp's DSP curve. The Stage One kit is the single most-recommended aftermarket audio upgrade across every BMW forum I've read in the last five years, and for good reason.

What's in the Box

A chassis-specific Stage One kit includes the door midranges, the tweeters (where applicable), the under-seat woofer delete plates or matched woofers depending on the tier, and a mounting bracket set for your specific chassis. Woven fiberglass cones, butyl rubber surrounds (addressing the foam rot problem directly), silk composite tweeters, oversized magnets to absorb the factory amp's power without thermal compression. 100-day in-car trial and a 4-year warranty.

Pricing in 2026

Chassis-specific Stage One kits run $370 to $499 depending on generation. Adding the Bavsound Ghost under-seat subwoofers brings total parts cost to around $800 to $1,000. Compared to any Tier-D bypass build with a $900 DSP plus $700 amp plus $600 speakers plus $200 labor, Stage One gets you 80% of the audible improvement for 15% of the money.

Where Stage One Falls Short

Stage One is tuned to factory amp power levels. If you want concert-volume SPL or if you want to run a real subwoofer with 300+ watts of clean power, Stage One is not that. It is explicitly the plug-and-play quality upgrade, not the SPL-chaser build. If you're the kind of person who asks "can I turn it up louder", Stage One alone won't satisfy. You'll end up adding Ghost subs or moving to a Match UP 7BMW amp or a full Tier-D build.

For the other 90% of owners who want music to sound better at normal listening volumes, have clearer top-end, tighter mid-bass, and less fatiguing long-drive character, Stage One is the single best dollar-for-dollar upgrade available on a BMW.

Focal IS BMW - The French Audiophile Alternative

Focal's Inside Line program targets OEM integration builds across every major luxury brand, and their BMW line has been my backup recommendation to Bavsound for about five years. The IS BMW 100K is the K2 Power 4-inch component kit - aramid fiber K2 cone woofer, inverted dome tweeter with neodymium motor, external crossover, 60 watts RMS into 4 ohms, 80Hz-22kHz response.

Focal's strength is tweeter resolution. The aramid cone has a different character than Bavsound's woven fiberglass - tighter midrange detail, more present vocal range, crisper cymbal decay. Price in 2026 runs $440 at European dealers and up to $650 on Crutchfield in the US. Cleaner than Stage One on acoustic and classical, slightly more clinical on rock and hip-hop where Stage One's warmer voicing wins.

The Focal ISBMW100L is the large-basket variant for BMWs that use the larger speaker pocket in the door. Verify your mounting format before buying. F30, G20, F10, G30 all use the standard basket. Some E-chassis and certain M-badge trims use the large basket. Check the door panel before you order.

The Focal Tweeter Problem

Focal's inverted dome tweeters are sharp. On BMW cabins, which already have a lot of glass and hard leather reflective surfaces, that sharpness can come across as harsh or fatiguing over long drives. Some owners love it (it's the classic Focal signature). Others, me included on some chassis, prefer Bavsound's softer silk composite voicing. This is the reason the F30 forums have 40-plus-page threads with Bavsound vs Focal debates that never fully resolve - both are good, they're just voiced differently.

Focal Auditor EVO for Budget Builds

If you want the Focal sound signature on a BMW that doesn't have a direct IS BMW kit (certain E-chassis, some Z4), the Focal Auditor EVO ASE165 is a 6.5-inch 2-way component kit at $138 that brings French acoustic engineering to budget builds. Not a direct BMW fit like the IS series, so you'll need to check mounting dimensions.

Audison Prima - The OEM-Integration Specialist

Audison is the Italian DSP and amp house owned by Elettromedia, same parent as Hertz. They make the strongest BMW-specific product line on the market if you're moving past plug-and-play speakers into proper DSP territory. On the speaker side, the Audison Prima AP BMW K4E is a 4-inch 2-way component kit built for the large basket format - 100W peak, 50W continuous, 4 ohm, 89dB sensitivity, 90Hz to 23kHz response.

The Prima AP BMW K4E sits neatly between Bavsound and Focal in price and character. Voicing is neutral, neither warm like Bavsound nor bright like Focal, which makes it the safe recommendation when the owner can't decide between the other two. More importantly, Audison Prima speakers pair beautifully with the rest of the Audison ecosystem - the AP BIT amps, the APBMW ReAMP plug-and-play amp replacements, and the Bit One DSP processors.

The Audison Ecosystem Advantage

If you know you're eventually going Tier-D (DSP + aftermarket amp + aftermarket speakers + bypass), starting with Audison speakers and building up through the Audison amp line means every component is voiced to work together and every connector is plug-and-play BMW. That's worth something. Starting with a mismatched stack (Focal speakers, Helix DSP, JL amp) means more tuning work to get the system cohesive.

Morel, Hertz, and the Other Italian School

Morel (Israeli) and Hertz (Italian, Elettromedia) both target the audiophile BMW crowd. Morel's warmer tweeter voice is preferred by some over Focal on long-drive comfort. Hertz Mille Pro and Mille Legend pair cleanly with Audison amps. Neither has the same degree of plug-and-play BMW-specific kits as Bavsound or Focal, so these are the brands you pick when you're already planning a bespoke build with a professional shop doing the integration work.

Under-Seat Subwoofer - The Single Highest-Leverage Upgrade

Here's the forum consensus I've been repeating for years - if you can only do one swap on your BMW, do the under-seat woofers. Not the door mids, not the tweeters, the under-seat 8-inch drivers. The factory units are the weakest link in every tier below B&W, the replacement process takes 45 minutes, and the audible improvement on bass region (roughly 40Hz to 120Hz) is more dramatic than any other single component change.

Why the Under-Seat Slot is Special

BMW's under-seat enclosure is a specific acoustic environment. Volume is roughly 0.17 cubic feet after you subtract the woofer magnet space, and it behaves somewhere between a sealed and a very mildly ported box. Most aftermarket 8-inch subwoofers are designed for 0.5 to 1.0 cubic foot sealed enclosures and they sound wrong in the factory slot - loose, boomy, low-excursion. BMW-specific slim woofers exist because the enclosure demands drivers with matched T/S parameters.

Morel IP-BMWSUB82 - The Direct-Fit Benchmark

Morel's 8-inch direct-fit sub is the audiophile choice. Built specifically for the BMW under-seat location with a model-specific adapter ring, 180W RMS, 2 ohm impedance, voiced to integrate with the IR and IP BMW speaker lines. $389 as a single, around $600 to $650 for a pair. Tight, articulate, the kind of bass that disappears into the music rather than announcing itself. This is my default recommendation on any F or G chassis that isn't going to add a trunk sub.

Audison AP BMW S8-2 - Tuned for the Factory Enclosure

The Audison Prima AP BMW S8-2 is the other direct-fit option, engineered with electro-acoustic parameters specifically tuned for the BMW under-seat acoustic space rather than a generic free-air design. 150W RMS, 300W peak, 2 ohm, 40Hz to 500Hz response. If you're running Audison amps or DSP elsewhere in the system, this is the matching sub choice. Pricing runs around $350.

Earthquake i82SWS - The Shallow-Mount Value Play

Earthquake Sound's i82SWS is a 2-ohm shallow-mount 8-inch woofer designed as a direct replacement for BMW under-seat locations. 2-1/8 inch mounting depth, inverted cone for maximum excursion in the shallow space, 150W RMS, 300W peak. At $249 per unit, it's the value-forward option when the Morel or Audison price points don't fit the build budget. Performance is honest. Not as refined as the Morel, not as tuned-for-BMW as the Audison, but genuinely good for the money.

Earthquake X84SWS for 4-Ohm Matched Pairs

The 4-ohm X84SWS variant is the correct choice on chassis with 4-ohm factory amp outputs (most HiFi setups, some HK variants) where you want to keep the factory impedance match rather than introducing a 2-ohm load the amp wasn't built for. $320 each. Shallow mount, gasket-included, clean install.

Bavsound Ghost and Focal ISUB BMW 4

The Bavsound Ghost is a shallow 8-inch with neodymium motor, FEA-designed specifically for the BMW under-seat volume. 100-day trial, roughly $400 a pair. Tuned to integrate perfectly with a Stage One kit above it. Focal ISUB BMW 4 is the 4-ohm Focal equivalent, $400-$500 a pair, tuned to match the IS BMW 100K speaker line. Both are excellent. If you're running a Bavsound system, Ghost. If you're running Focal, ISUB.

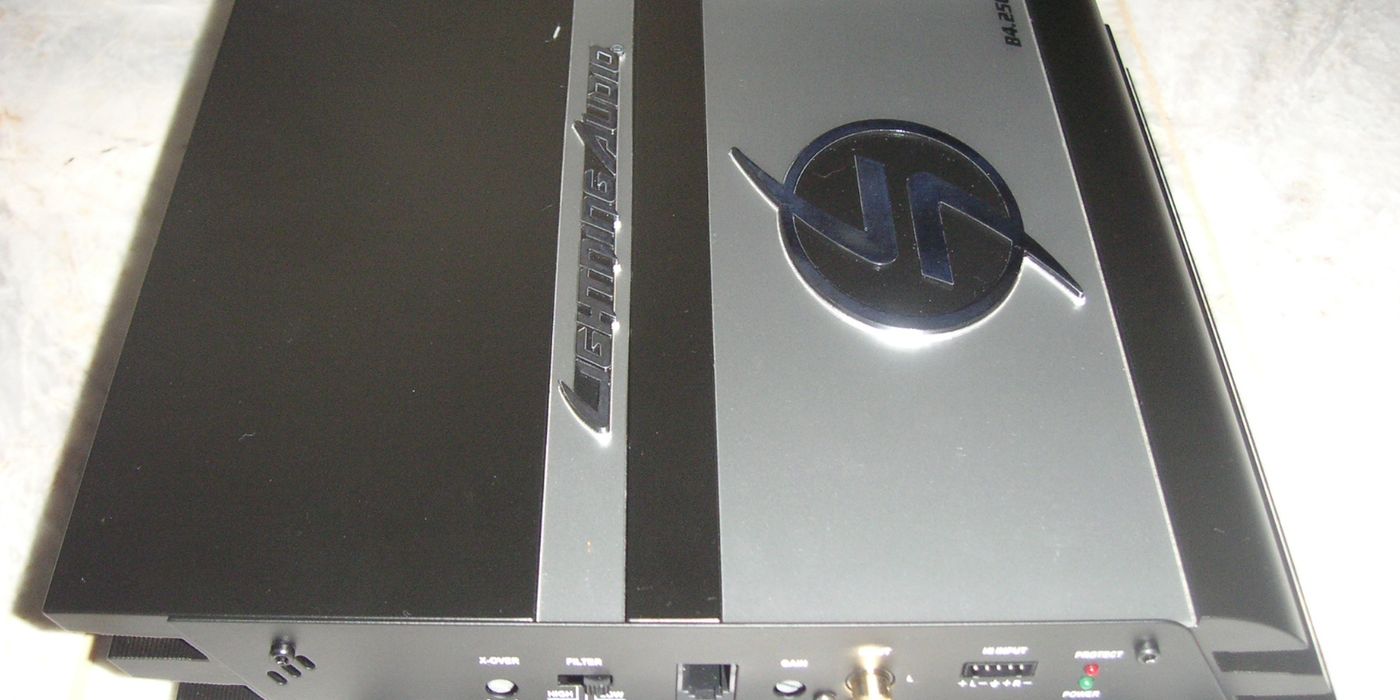

DSP Processors - The Most-Skipped Upgrade That Does the Most

A DSP (digital signal processor) is the single most expensive component-per-perceived-improvement when done right, and the single most-skipped upgrade in DIY builds. People buy $800 speakers, plug them into a factory amp running factory DSP curves tuned for the old speakers, and wonder why it doesn't sound like the demo at the shop.

Why a DSP Matters on a BMW

Three reasons. First, factory DSP curves apply aggressive EQ to compensate for factory speaker limitations - they roll off high frequencies, boost midbass, and apply phase correction for the factory driver positions. Those curves sound wrong once better speakers are in. Second, factory time-alignment is set for driver geometry that assumes you sit at the OEM seat position, which almost nobody does. Third, factory crossovers on the under-seat woofers roll off too high (around 100Hz), which makes the sub region muddy. A DSP lets you set a proper 80Hz crossover with a real low-pass slope.

The Four Processor Paths

Audison Bit One.1 or Bit Virtuoso. The reference for BMW integration because they accept high-level input up to 32VAC without needing external attenuators. 12 inputs, 13 outputs. $900 to $1,400. This is what my shop uses when a customer wants a professional tune.

Helix DSP.3S or DSP Ultra S. German competition-grade, better DAC chips than Audison, more complex tuning software (DSP PC Tool). $700 to $1,600. Preferred by competition SPL builders.

Match UP 7BMW. This is the plug-and-play 7-channel amplifier with integrated 64-bit DSP and BMW-specific harness. Easiest DSP upgrade path for HiFi-tier BMWs - it drops into the factory amp connector, replaces the amp entirely, gives you full DSP control, and comes pre-configured for BMW DSP curves. Around $900. If you want DSP but don't want a bench-tuning project, this is it.

JL Audio FiX-86 plus TwK-88. The FiX-86 is a line-output rebuilder that measures and inverts the factory EQ curve to produce a flat signal for the downstream amp. The TwK-88 is the DSP processor that follows. Combined around $800. Very popular on F10 and F30 builds, particularly when owners are keeping the factory amp for ASD and chimes but want flat signal to the aftermarket chain.

AudioControl D-4.800 for All-In-One Builds

For BMW owners who want a single unit that combines a real DSP with real amplification in one chassis, the AudioControl D-4.800 Matrix is a cleaner solution than stacking separates. 800 watts of Class D, six speaker-level inputs that accept factory signals directly (no line output converter needed), per-channel input and output RTAs for matching factory signals, DM Smart App for phone-based tuning. Configurable as 4, 3, or 2 channels depending on whether you're running mains plus sub, or just mains. $599, which is less than a Helix DSP plus separate amp.

Budget DSP Options

For owners who want DSP on a tighter budget, the Taramps Pro 2.4BT is a 24-bit/48kHz DSP with Bluetooth 5.4 smartphone control, 15-band graphic EQ, parametric filters, HPF/LPF crossovers to -48dB per octave, per-channel delay, and an adjustable limiter. $79. Good enough for a budget build that still wants real processing.

Sound Deadening - The Free 10% Every Build Should Include

Sound deadening is the most boring upgrade you can do. It's also one of the most consistently underrated. A 36-square-foot roll of butyl damping mat applied to all four door skins, the floor pan, and the trunk floor turns every panel from a resonating drumhead into a dead weight, which transforms how bass loads in the cabin, how midbass impacts, and how much road noise sits under your music.

Kilmat - The DIY Standard

Kilmat 80-mil butyl sound deadening is the most-used DIY material in BMW builds. 0.5 pounds per square foot, butyl rubber core with aluminum foil backing, aggressive self-adhesive. The 36-square-foot roll is enough for all four doors on any BMW with material left over for the trunk. $70. My default recommendation when a customer wants door deadening without spending Dynamat prices.

CUKWUYBY Three-Layer for Full-Cabin Builds

CUKWUYBY's three-layer construction adds 8-wire reinforced foil for heat reflection on top of the butyl core, which is a nice bonus on summer drives. 36 square foot roll at $50. Good alternative to Kilmat if you want the extra thermal insulation layer.

Where to Apply It

Priority order for any BMW build: inner door skin (the metal panel behind the door card, not the outer door shell), outer door skin through the access holes, trunk floor (especially under any factory or aftermarket sub), rear deck on sedans, and firewall if you want to reduce engine intake noise. Stop at the roof unless you want to chase another 1% of noise floor. Covering 25% of each panel surface is the practical sweet spot - you don't need 100% coverage to get most of the benefit.

Installation Difficulty Tiers - What You're Actually Signing Up For

I grade BMW audio installs into five tiers based on tools required, time invested, coding complexity, and whether the job is reversible. Know which tier you're attempting before you open the first door panel.

Tier A - Plug-and-Play Speakers Only

Bavsound Stage One or Focal IS BMW, no sub, no amp change. 2 to 3 hours. Tools: T20 and T25 torx, a plastic trim tool kit. Pop the door card, unclip the factory speaker connector, swap drivers, reconnect, reinstall panel. Fully reversible, no coding, warranty-safe. Labor at a shop: $200 to $400.

Tier B - Plug-and-Play Speakers Plus Under-Seat Sub

Stage One plus Bavsound Ghost or Morel IP-BMWSUB82. 3 to 4 hours. Same tools as Tier A plus a 10mm socket for the seat bolts. Remove the front seats (5 minutes each), swap the factory woofers, reinstall. Still reversible, still no coding.

Tier C - Plug-and-Play DSP Amp

Match UP 7BMW or Audison APBMW ReAMP, replacing the factory amp. 4 to 6 hours. Remove trunk trim on sedans, unplug factory amp, plug in new unit, install ASD BYPASS harness if chassis has ASD. Still fully reversible. Tuning takes another 2 to 4 hours with a measurement microphone and the manufacturer's DSP software. Labor at a shop with tuning: $600 to $900.

Tier D - Full Amp Bypass With Aftermarket DSP, Amp, and Speakers

10 to 20 hours DIY, 8 to 12 hours professional. Run a power cable from battery to trunk (4-gauge minimum), a new ground, a remote turn-on lead (typically tapped behind the fusebox), speaker wires through door boots, mount the DSP, mount the amp, integrate the factory signal (high-level converter on non-MOST cars, MOST adapter on Logic 7 cars). Not reversible without scars. Labor at a shop: $1,200 to $2,500.

Tier E - MOST Bus Signal Capture on Logic 7

Adds complexity on top of Tier D. Mr12Volt MOST interface or equivalent, sometimes BMW coding changes via NCS Expert or E-Sys. Reserve for enthusiasts comfortable with a laptop and BMW coding tools. If you're not willing to spend an evening learning how to run E-Sys, pay a shop or stick to Tier C.

Budget Tier Picks - The Four Builds I Actually Recommend

I get asked to spec audio builds every week. Here are the four tiers I actually quote, with real parts and real pricing in 2026.

Budget - $400

Bavsound Stage One kit for your chassis. Period. If you are on an F30 HiFi, G20 HiFi, E90 HiFi, or any base system, this is the single highest-value audio upgrade you can buy. Three-hour install, fully reversible, 4-year warranty, 100-day in-car trial. 80% of the audible improvement of a full build for 15% of the cost. If you do nothing else, do this.

Mid - $1,200

Bavsound Stage One plus Bavsound Ghost under-seat subs. The Stage One handles clarity and mid-bass, the Ghost subs handle everything under 80Hz. Still plug-and-play, still reversible, still warranty-safe, still no coding. This is the build I recommend to 90% of BMW owners who care about sound. Sedan, SUV, coupe, M-car, doesn't matter. If the chassis has a Bavsound kit, this pairing works.

Enthusiast - $2,500

Focal IS BMW 100K speaker kit, Focal ISUB BMW 4 subs, Match UP 7BMW plug-and-play DSP amp, Kilmat 80-mil sound deadening in all four doors plus trunk floor. This is where you cross into real amplification with DSP control. The Match UP 7BMW replaces the factory amp entirely with 8 channels of 64-bit DSP. Focal K2 Power aramid cones give competition-grade resolution, Kilmat turns every door into a proper speaker enclosure, and a professional tune adds $200 to $400 if you don't want to DIY the DSP tuning.

Audiophile - $5,000+

Focal Utopia M component speakers (beryllium tweeters, pure magnesium midranges), Audison APBMW ReAMP 3 plug-and-play amp with integrated 8-channel DSP, Morel IP-BMWSUB82 pair in the under-seat, full Dynamat Xtreme door and trunk deadening, Audison AP H ASD BYPASS harness, professional acoustic measurement tune at a high-end shop. This is a full Tier D build. Sounds better than the factory B&W Diamond on pure fidelity, though B&W still wins on factory integration and brand cachet. Only makes sense on a non-B&W chassis where you care more about sound than resale optics.

Common Mistakes I See on Every BMW Audio Thread

Six mistakes I watch customers and forum posters make over and over. Avoid these and you're ahead of 80% of DIY builds.

Buying the Wrong-Chassis Kit

E90 Bavsound kits do not fit F30. F30 kits do not fit G20. Speaker sizes might be identical on paper (100mm mids) but mounting geometry, connector pinouts, and basket shapes differ. Always buy the kit that explicitly lists your chassis code.

Skipping the DSP

Spending $800 on aftermarket speakers and running them off the factory DSP curve is leaving 40% of the improvement on the table. Either pick a plug-and-play speaker kit designed to absorb the factory curve (Bavsound, Focal IS BMW) or add a real DSP to the chain (Match UP 7BMW, Audison Bit One, JL FiX). Don't stack aftermarket speakers onto a factory curve and expect reference sound.

Skipping the ASD Bypass

F and G chassis with Active Sound Design will go silent on synthesized engine noise if you replace the amp without the ASD BYPASS harness. $100 part, 20-minute install, saves you a forum post.

Trying to Swap the Head Unit

Don't. Modern BMW head units are integrated into iDrive, the instrument cluster, the ASD module, the climate control, and sometimes the transmission. Replacing the head unit breaks CarPlay integration, sometimes kills the steering wheel controls, and often breaks chime routing. If you want better audio processing, add a DSP downstream of the factory head unit. Do not swap the head unit.

Buying Generic 8-Inch Subs for Under-Seat

Covered above but worth repeating. The factory under-seat enclosure is 0.17 cubic feet. Generic 8-inch subs need 0.5 to 1.0 cubic feet. Use a BMW-specific slim driver (Morel IP-BMWSUB82, Audison AP BMW S8-2, Bavsound Ghost, Focal ISUB BMW 4, or Earthquake i82SWS/X84SWS).

Touching the B&W Diamond

Don't. Not the speakers, not the amp, not the DSP. Add Dynamat to the doors, stop there, go drive.

Internal Link Hub - Where to Go Next

This article is the hub for the BimmerTalk audio cluster. If you want to dig deeper into any specific piece, here are the companion articles I've written over the last few years.

For a deeper dive on Logic 7 - why it disappoints on E90 and E60, the DSP curve issues, and why the forum consensus is "bypass or leave it alone" - read my full breakdown at BMW Logic 7 Explained. If you're weighing Harman Kardon against the base HiFi tier on an F30 or G20 and trying to decide whether it's worth paying for, BMW Harman Kardon vs Standard covers the honest comparison. Considering a B&W Diamond car or already own one - the long-form review is at BMW Bowers and Wilkins Review.

The dedicated sub-upgrade deep-dive is at Best Under-Seat Subwoofer for BMW, with every direct-fit option compared head-to-head. For the full walkthrough on DSP amp selection, tuning software, and bypass strategy, read BMW Amplifier and DSP Upgrade. And the companion to sound deadening is the full step-by-step BMW Sound Deadening Guide.

On the infotainment side, if you're chasing better source material quality, my writeups on BMW Apple CarPlay Retrofit and BMW Wireless CarPlay Adapter Guide cover the cleanest ways to get high-bitrate streaming into the factory chain. For chassis context on which generation is the best buy, Best Year BMW 3 Series and Best Year BMW 5 Series both include audio option notes.

FAQ - The Fifteen Questions I Get Every Week

Is upgrading BMW speakers worth it

Yes, on any tier below B&W Diamond. On base and HiFi systems it's transformative. On HK it's a noticeable refinement. On B&W it's a downgrade. The specific upgrade that makes sense depends on which tier you have and how deep you're willing to go.

Can I upgrade my BMW speakers without changing the amp

Yes, and for most owners this is the correct answer. Bavsound Stage One and Focal IS BMW kits are explicitly designed to be driven by the factory amp. The Stage One is plug-and-play on HiFi and HK across most F and G chassis. Full amp bypass only becomes necessary when you want real aftermarket amplification power levels.

What is the difference between BMW HiFi and Harman Kardon

HiFi (S676A) is a mid-tier 10-speaker system with a basic amp pushing around 205 watts. HK (S688A) is 16 speakers with 464-600 watts depending on chassis and a dedicated Harman Kardon amp. HK is measurably better, but it's also a $875+ option on G20 and forum consensus is that the gap between HiFi and HK is smaller than the gap between HiFi and a Stage One kit on HiFi.

Does BMW Logic 7 sound better than Harman Kardon

Not really. Logic 7 on paper has more channels and more output (420 watts on E60 vs typical HK), but the Logic 7 amp's DSP curve is more aggressive and the system distorts at the top of the volume knob. HK on F30 or G30 is a cleaner real-world listen than Logic 7 on E90 or E60. If you have Logic 7 and you want an honest upgrade, a DSP bypass does more than new speakers.

How long does a BMW speaker upgrade take to install

Tier A plug-and-play speakers: 2 to 3 hours. Tier B adding under-seat subs: 3 to 4 hours. Tier C plug-and-play DSP amp: 4 to 6 hours plus 2 to 4 hours tuning. Tier D full bypass build: 10 to 20 hours DIY or 8 to 12 hours professional. Tier E with MOST bus capture: add 2 to 4 hours on top of Tier D.

Will aftermarket speakers void my BMW warranty

A plug-and-play speaker swap does not void the factory warranty under the Magnuson-Moss Warranty Act in the US - the dealer has to prove that the aftermarket part caused the failure they're trying to deny. In practice, Bavsound, Focal IS BMW, and Audison Prima speakers plug into the OEM connectors and drop into OEM mounts with zero permanent modification, which makes warranty denial nearly impossible. A Tier D amp bypass build with cut wires and drilled mounts is a different conversation.

What is the best plug-and-play BMW speaker upgrade

Bavsound Stage One on a HiFi-equipped F30, G20, F10, G30, F15, or G05. Forum consensus, install base, and real-world shop experience all point to the same answer. Focal IS BMW 100K is the close second with a different tonal character (brighter, more detailed on top-end).

Is Bowers and Wilkins worth the price on a BMW

Yes if you buy it with the car. The $3,400 to $4,900 option cost gets you a genuinely audiophile system with diamond tweeters, aluminized Kevlar midranges, and Rohacell bass subs that would cost $8,000+ to replicate aftermarket. Adding B&W after the fact through a dealer retrofit is not really a thing - the system depends on chassis-specific wiring routed at the factory. If you're ordering a new G30, G05, or G11 and debating the B&W option, pay for it.

How much does a full BMW audio upgrade cost in 2026

Budget: $400 for a Bavsound Stage One kit. Mid: $1,200 for Stage One plus Ghost subs. Enthusiast: $2,500 for Focal plus Match UP 7BMW plus deadening. Audiophile: $5,000+ for Focal Utopia plus Audison ReAMP plus Morel subs plus full deadening plus professional tune. Labor at a shop adds $200 to $2,500 depending on tier.

What is MOST bus and why does it matter for BMW audio

MOST (Media Oriented Systems Transport) is the fiber-optic digital audio network BMW used on Logic 7 and some F-chassis HK and Top HiFi trims. On MOST cars, the audio signal between head unit and amp is digital optical, not analog copper. That means you cannot tap a line-level signal from the harness with a standard high-level converter. You need a MOST interface like the Mr12Volt, a MOST-compatible amp replacement like the Audison APBMW ReAMP, or a high-level tap at the factory amp's speaker outputs.

Can I install BMW speakers myself

Tier A and Tier B yes, easily, with torx drivers, trim tools, and a weekend afternoon. Tier C yes if you're comfortable pulling trunk trim and have a laptop for DSP tuning. Tier D and Tier E are professional-shop territory unless you have prior mobile audio install experience.

What speaker sizes fit an F30 3 Series

F30 door midranges are 4-inch (100mm). Tweeters are 25mm (1 inch). Under-seat subs are 8-inch (200mm). Non-MOST on all trims. Bavsound F30-specific Stage One kit fits both HiFi and HK F30 variants. Focal IS BMW 100K also fits F30.

Do E90 speakers fit an F30 or G20

No. Speaker sizes are close (100mm mids on both) but mounting geometry, basket shape, and connector pinouts are different between E90 and F30, and between F30 and G20. Always buy the chassis-specific kit.

What is the best under-seat subwoofer for BMW

Morel IP-BMWSUB82 for audiophile listening, Audison AP BMW S8-2 if you're running the Audison ecosystem, Bavsound Ghost if you're pairing with a Stage One kit, Focal ISUB BMW 4 if you're pairing with Focal IS BMW speakers, Earthquake i82SWS as the value-forward option at $249. Do not use a generic 8-inch sub in the BMW under-seat slot.

Should I bypass my factory BMW amplifier

Depends on which amp. Base and HiFi amps: bypass is optional, plug-and-play speakers work great with them. Logic 7 amp: bypass strongly recommended because the DSP curve is aggressive and the amp distorts at volume. HK amp: retention works for most owners, bypass only if you want real aftermarket amplification power. B&W amp: do not touch.

Bottom Line - What to Actually Do

If you have base, HiFi, or HK on any F-chassis or G-chassis BMW, buy a chassis-specific Bavsound Stage One kit for $400, install it in an afternoon, and you're done for 90% of owners. Add Bavsound Ghost subs for another $400 if you want the bass region to match the new clarity. That $800 total build covers what the vast majority of BMW owners actually want.

If you're on Logic 7 and frustrated, skip the plug-and-play route. Either drop in an Audison APBMW ReAMP to replace the factory amp entirely and call it done, or commit to a Tier D build with full bypass. Half-measures on Logic 7 don't work.

If you're on B&W Diamond, leave it alone. Add door deadening, put good music on, and enjoy the only factory BMW audio system that was ever actually reference-grade.

If you want to go all the way on a non-B&W chassis, budget $5,000+, plan a Tier D build with Focal Utopia or similar audiophile speakers, an Audison or Match DSP amp, Morel under-seat subs, full cabin deadening, and a professional acoustic tune. Done right, it beats the factory B&W on pure fidelity. Done poorly, it sounds worse than a $400 Stage One kit and costs ten times more. The difference is in the tune and the deadening, not the component prices on the spec sheet.

Final sanity check before you order anything - decode your VIN, confirm your audio option code, confirm whether your chassis has MOST bus, confirm whether your chassis has ASD. Five minutes of research saves you from ordering the wrong kit. After that, the Bavsound box is on your doorstep in three days and your BMW finally sounds like it should have from the factory. I've been doing this for 5 years and the upgrade path hasn't fundamentally changed - good drivers in the right mounts, matched to the amp that drives them, in a cabin that's damped enough to let the drivers do their job. Everything else is marketing.
