BMW Wiring & Connectors

BMW wiring failures are disproportionately concentrated in a few known problem areas - headlight connectors, trailer wiring points on E-chassis cars, and CAN-bus junctions near the battery on high-mileage vehicles. Knowing where to look first saves hours of chasing symptoms that scatter across multiple fault codes.

The E46 and E90 headlight connectors are the most common wiring failure on these platforms. The H7 bulb connector on E46 and the H7/H1 connectors on E90 carry significant current for extended periods, and the plastic housing softens and melts under heat. The result is partial contact, intermittent headlight operation, and sometimes a small fire in the headlight housing. This is a well-documented failure with dedicated repair harnesses available - the fix is replacing the connector body with a new one while keeping the existing wiring.

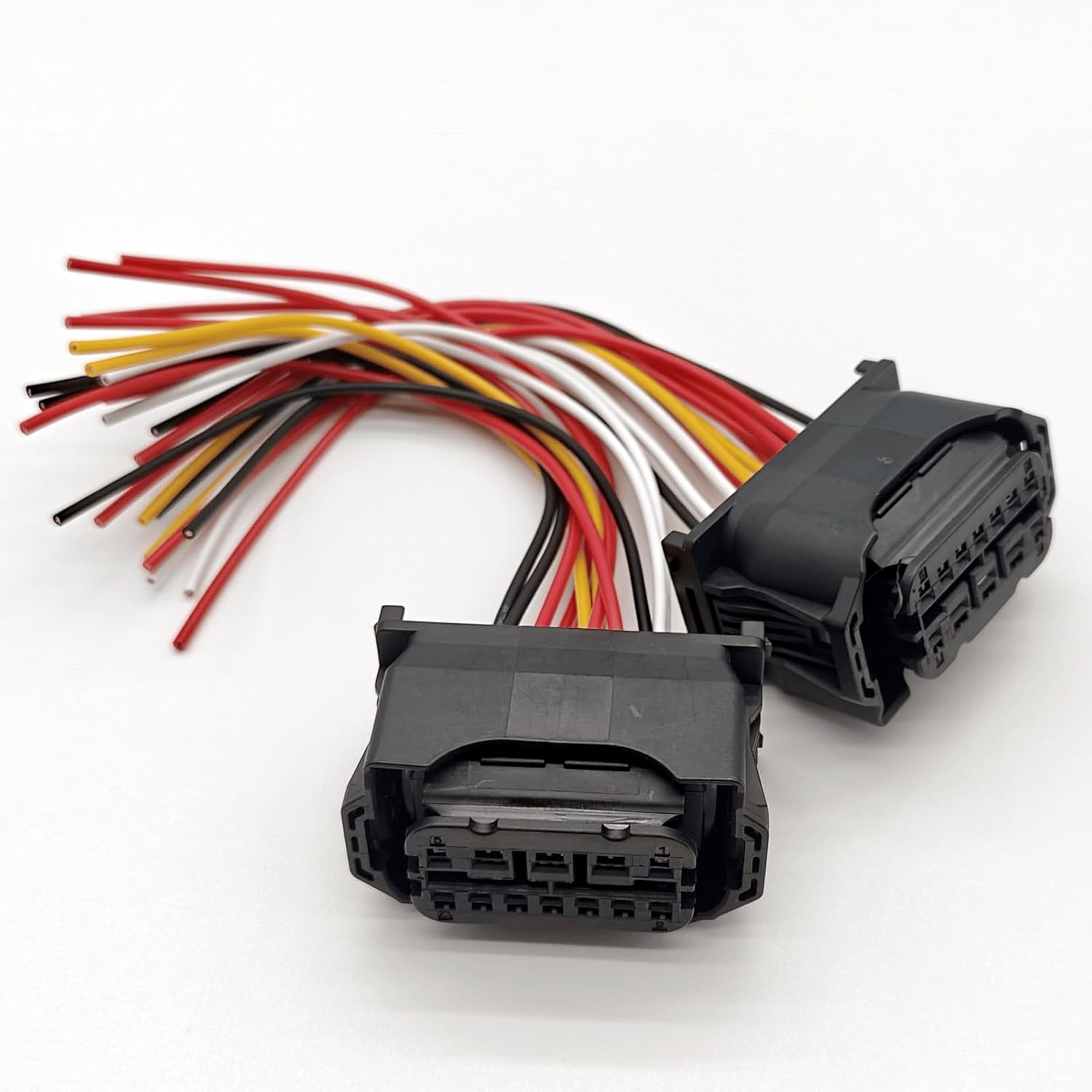

Repair harnesses for the E46 headlight are available from dealers and online suppliers for $8-12 per connector. The job involves cutting back the melted connector, soldering the repair harness pigtail in, and heat-shrinking all joints. Use proper solder connections, not crimp connectors, on headlight circuits - the vibration environment is harsh and crimp connections fail over time on these.

CAN-bus wiring problems on BMWs show up as multiple simultaneous fault codes across modules that have no apparent relationship to each other. An airbag fault, an ABS fault, and a body electronics fault all appearing together often means a CAN-bus line is interrupted rather than three simultaneous component failures.

CAN-bus wires are twisted pairs - the twist rate is part of the noise rejection that makes the system work. When splicing into a CAN-bus line, maintain the twist to the connection point and use proper automotive wire with the correct gauge. BMW uses 0.35mm2 wire for most CAN lines - replacing with heavier wire disrupts impedance matching and can cause communication errors. Dedicated BMW CAN-bus repair kits with pre-twisted wire sections are available from suppliers like ESS or BMW ETK. Test with a full BMW scanner after repair - ISTA will show communication status of each module directly.

E46 and E90 owners who add trailer wiring often create persistent electrical gremlins by tapping directly into the tail light circuits without proper isolation relays. The additional load from trailer lights causes voltage drop that the CAN-bus body module interprets as bulb failures, triggering repeated fault codes. The correct installation uses a trailer wiring module that interfaces with the BMW bus rather than direct circuit taps. BMW-compatible trailer wiring modules from Bosal and Westfalia integrate with the existing lighting system and satisfy the bulb monitoring requirements.
