BMW Jack Pads & Lift Points

I'll be direct about this: lifting an F30, F10, G20, or G30 with a bare floor jack cup against the rocker panel will damage the car. The pinch welds on F and G platform cars are narrower and the sill plastic is structural to the appearance but fragile to point loads. BMW dealers use lift arms with adapters. In the home garage, polyurethane jack pads are the solution.

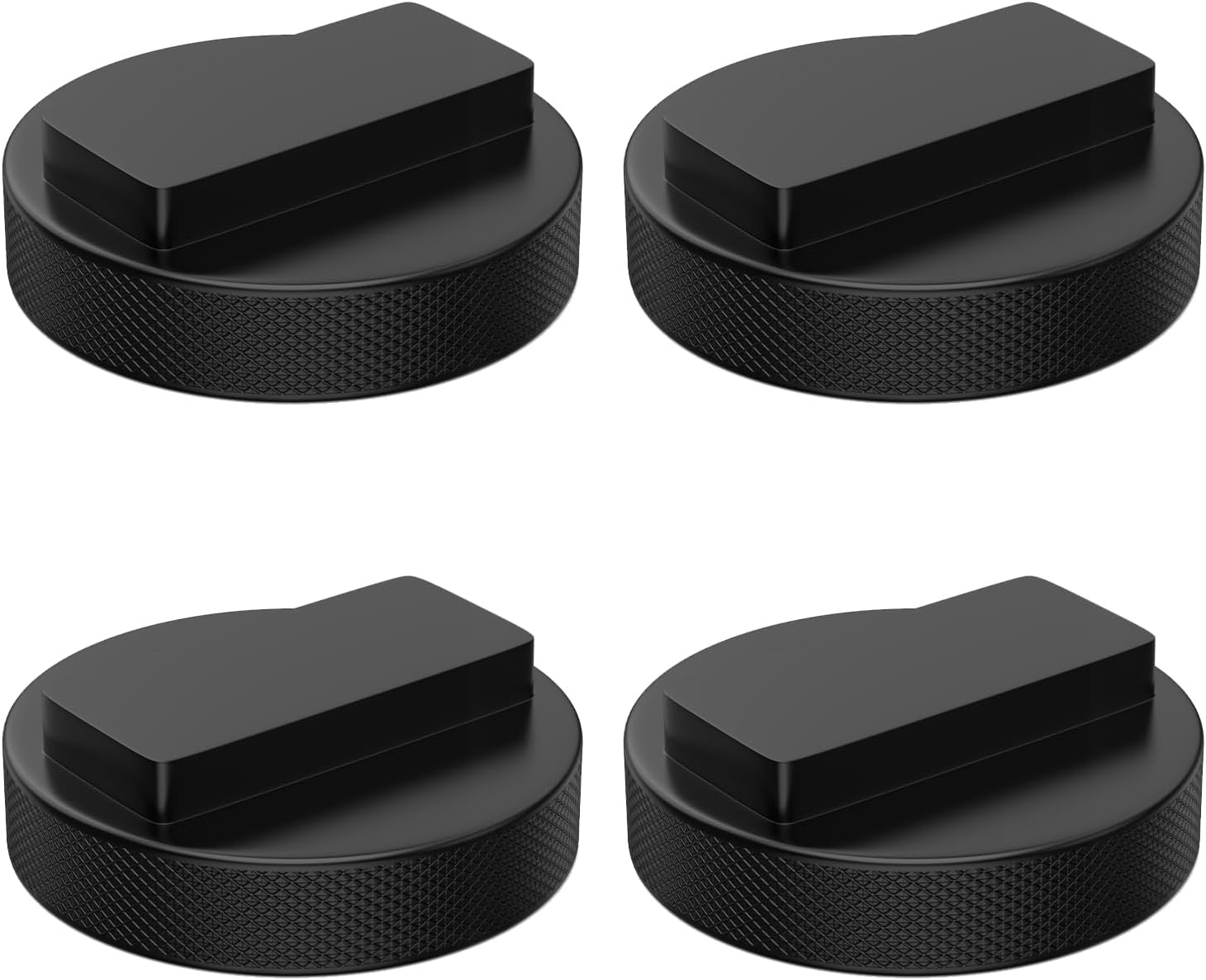

The standard BMW jack pad for F and G chassis is a polyurethane block with a slot milled to fit the pinch weld. It distributes the load across the weld instead of concentrating it at the saddle's center point. The most common size is the 78mm-width pad, which fits the majority of F and G platform models. Some wider vehicles like the G05 X5 use a slightly different pad, so confirm your chassis before ordering.

Ground clearance becomes critical if you've lowered your BMW even 20mm from stock. Most low-profile floor jacks have a minimum saddle height of 85-100mm. Add the jack pad and you need about 130-150mm of clearance under the rocker panel just to get the setup positioned. On a car lowered 30mm from stock F30 ride height, that's sometimes marginal on rough driveway surfaces.

My solution is a low-profile hydraulic floor jack with a minimum height under 80mm, combined with approach ramps to get the nose or rear elevated before placing the jack. Arcan and Torin make decent low-profile options in the 2.5-ton range that work well for BMWs. The Powerbuilt tripod jack is another option that gets very low. Whatever you use, the jack saddle should be the right diameter to keep the pad centered - a saddle too wide for the pad slot will tip under load.

The E90, E46, and E39 are more forgiving because the pinch welds are larger and more accessible. I still use jack pads on these cars out of habit - it protects the weld from corrosion damage and gives the pad a secure grip. On the E46 specifically, front jacking is done at the front subframe crossmember, not the pinch weld, for the center lift. A hockey puck works fine for this application as a jack pad substitute.

For the jack stand placement after lifting, use the reinforced subframe points or the dedicated jack stand notches. On F chassis cars, the rear jack stand point is the rear subframe mounting bracket - visible as a thick steel plate below the rear differential. Never leave a BMW resting on the rocker panel jack pads long term - those are lifting aids, not static support points.

Replace pads if they show cracking, compression set (they no longer spring back), or if the slot has widened from repeated use. Quality polyurethane pads last years but eventually fatigue. A cracked pad under load is a failure point you don't want to find out about when a BMW is in the air.
