Best Turbo Upgrade for BMW B58 - The 700 Plus HP Path

Every time someone asks me "what is the best turbo upgrade for a BMW B58", I give the same annoying answer - it is not a turbo question, it is a fueling question. I have built more B58s in the last four years than every other BMW engine combined, and the pattern never changes. Guys show up with a budget for a hybrid or a big single, we run the numbers on their stock HPFP, their stock LPFP, their plastic charge pipes, their unflashed ZF, and the turbo budget gets cut in half because the fueling system needs to exist before the turbo does. My rule is simple - below 550 whp this is a fueling conversation, above 550 whp it becomes a turbo conversation.

That single framing has saved more customers from wasting money than any parts recommendation I have ever made. The stock twin-scroll B58 turbo is criminally underrated. On a Gen 2 car with a proper Stage 2 flash and an E30 blend I have seen 480 whp on a chassis dyno with nothing more than a downpipe and an intake. Meanwhile the guy next to me at the dyno had a Pure 800 bolted up, stock HPFP, stock LPFP, no port injection, and he was pulling timing at 5500 rpm because the injectors ran out of fuel. He paid for a 700 whp turbo and made 540. The B58 punishes the wrong mod order harder than any BMW engine I have worked on - not because it is fragile, but because it is the strongest stock block BMW has ever sold a straight six in, and that means the fueling wall hides behind the power wall until it is too late.

This guide is organized around that rule. I am going to walk you through the fueling ceiling first, then the tune platform, then the actual turbos in tiers, then the transmission that will break if you forget about it, then the supporting mods, and finally which one to buy based on the chassis sitting in your garage. I have tuned Gen 1 F30 340is, Gen 2 G20 M340is, Gen 3 G42 M240is, Z4 M40is, X3 M40is, X5 40is, and I have watched the Supra community pull ahead of us on big-single data by two to three years. The landscape is bigger than any single blog post can cover, so I am going to stay opinionated - pick favorites, call out the brands I trust, and tell you where the SERP listicles are wrong.

That is the whole guide at a glance. Now let me tell you what each row actually means, why the fueling column is the row you should read first, and which rows are lying to themselves about cost. Read on in order - every section builds on the one before it.

The Fueling Ceiling Is the Real Ceiling

If you take nothing else away from this article, take this. The B58 fueling system is the first wall you hit, not the turbo. The stock twin-scroll turbo can make 450 whp on a Gen 1 car with meth and a good tune, and 500 whp on a Gen 2. By the time you have bolted a hybrid on, you are already past the stock HPFP and you did not know it. People see the turbo core upgrade and assume everything else will come along for the ride. It will not. You will run lean, you will pull timing, you will fail closed-loop, and you will dyno lower than a friend still on the stock turbo with proper fueling.

Gen 1 HPFP Versus Gen 2 HPFP

BMW revised the high pressure fuel pump when the B58 transitioned to B58TU in 2019. The exact flow numbers are trade secret, but dyno data from Motiv Motorsport, Bend Calibration, and my own shop consistently shows the Gen 2 pump delivers roughly 10 percent more volume at redline than the Gen 1 pump. Translated to crank power, that is the difference between the Gen 1 wall at 450 whp and the Gen 2 wall at 500 whp on 93 octane pump gas. Switch to E30 and both walls move up by about 20 whp, but the Gen 2 pump stays ahead. Switch to E85 and the walls collapse inward because E85 needs roughly 30 percent more volume per combustion event than gasoline - so the Gen 1 HPFP hits a hard wall around 430 whp on straight E85 and the Gen 2 around 470 whp.

This is the number one reason I tell Gen 1 F30 340i owners not to skip a Dorch DS15 Stage 1.5 HPFP when they bolt a hybrid on. The turbo will happily make 600 whp, the fuel pump will not. You cannot flash your way out of a volumetric fueling deficit - the pump either moves the fuel or it does not. A Dorch DS15 adds roughly 25 percent more volume and pushes the gasoline wall out to about 600 whp and the E85 wall to about 440 whp. Dorch Stage 2 goes further but costs enough that if you are buying it you should already be on port injection anyway.

Port Injection Becomes Mandatory Around 600 WHP

Direct injection on the B58 is a beautiful technology until you try to push it past 600 whp on ethanol. At that point the injectors physically cannot atomize enough fuel in the time they have, regardless of rail pressure or pulse width. Port injection solves this by adding a second set of injectors upstream in the intake runners that fire during the cold-valve window. The Fuel-It 6-injector kit is the gold standard in my shop - it drops into the intake manifold, adds its own controller, and works with both MHD and Bootmod3 out of the box. Burger Motorsports makes a similar kit that is slightly cheaper but trickier to tune. Either way, plan on $999 to $1,249 for the kit plus three to five hours of install time.

Dorch sells what they call a "DI Complete" bundle that combines port injection with a matched HPFP and LPFP set, priced around $3,500. If you are building a 750 whp+ car and you want zero guesswork, that is the package. If you are staying under 650 whp on E30, you can get away with stock direct injection plus an upgraded LPFP and be fine.

LPFP - The Walbro Walk

Low pressure fuel pump upgrades are the cheapest insurance you can buy. Stock LPFP starves around 500 whp on E85, and every tune beyond Stage 2 needs more fuel than the stock pump was designed to move. The Walbro 450 drop-in pump is the entry point - $549 for the Palenon Stage 2 kit, it wires into stock connectors and adds enough volume for any hybrid build. Fuel-It Stage 3 runs a Walbro 525 and a controller for $699-899, which is what I install on anything heading past 600 whp. For 800 whp+ single-turbo cars you want a dual pump setup, which the Fuel-It Stage 3 Plus kit supports.

E85 Logistics and Methanol as the Middle Ground

Running E85 in a B58 means rebuilding your fuel lifestyle. E85 pump stations are not everywhere, blend ratios vary by region and season (summer E85 is often E70), and ethanol attracts water over time. I know guys with 650 whp hybrid M340is who drive around with a second 5-gallon jug of race E85 in the trunk because they do not trust the local pump. If that sounds like too much, methanol injection is the middle ground. Direct-port meth injection with a 6-nozzle kit ($1,200-$1,500) adds octane and cooling without touching the fuel system - you keep running 93 octane pump and the meth does the heavy lifting. Snow Performance Stage 2 at $549 is the entry kit, but for anything beyond 550 whp you want direct-port, not charge-pipe, because a single nozzle upstream cannot distribute evenly across all six cylinders. Cylinder 5 and 6 on a B58 run leaner than 1 through 4 under boost, and a charge-pipe meth nozzle makes that worse, not better.

Gen 1 Versus Gen 2 B58 Head - The 4-Port and 6-Port Story

This is one of the most confusing parts of B58 tuning because BMW never officially branded the head changes. Here is what actually happened. Gen 1 B58 (2015-2019) uses a 4-port exhaust head, meaning the six cylinders dump into four exhaust ports before merging in the turbo manifold. Gen 2 B58TU (2019-2022) kept the 4-port geometry on most applications but revised the port shaping for better flow. Gen 3 B58TU2 (2022+) introduced a 6-port exhaust head on some applications, including the 2022+ Toyota Supra A90/A91 and the late-LCI G42 M240i, late-LCI M340i, and late-LCI M440i depending on build date. Earlier G-series cars still use the 4-port head even though the block is newer.

Why does this matter for turbo selection? The 6-port head flows more at high rpm because each cylinder has its own exhaust runner rather than sharing, and it changes the manifold geometry for big-single kits. Most Supra single-turbo kits (ETS, KLM Race, Vargas VTT-FAB, Pure 900 6-Port) bolt to the 6-port head and will NOT fit a 4-port head without a different manifold. Some kits offer both versions - JNC for example sells a 4-port and a 6-port manifold.

If you own a 2015-2021 BMW with a B58, assume 4-port. If you own a 2022+ M240i G42 or a 2022+ Supra, you are 6-port. If you own a 2022+ M340i LCI or M440i LCI, check your build date or pull the intake manifold and count the exhaust ports - BMW used both heads during the transition year. For hybrid turbos this is irrelevant because hybrids replace the turbo center section and keep the factory manifold. For big singles this is the whole ballgame.

Block Strength Is Not the Debate

One thing that is not different between generations is the block. Every B58 from 2015 onward is closed-deck with a forged crank, plasma-arc-sprayed iron cylinder bores, and a bedplate-style lower girdle. It is the strongest straight-six block BMW has produced, full stop. Stock rods and pistons are good to roughly 800 whp. At that level the piston ring lands become the weak point - not the block itself, which has handled 1,200+ whp on built-motor setups in Supra race cars without complaint. When I recommend a built motor above 800 whp it is about longevity, not survival. A stock-rod B58 will survive a dyno pull to 900 whp; it will not survive 50 pulls at 900 whp.

Bootmod3 Versus MHD - Tune Platform Choice

Before you buy a turbo, buy a tune platform, because the wrong one will cap your power potential before the hardware does. On the B58 you have four practical options - MHD, Bootmod3, JB4 piggyback, or a custom EcuTek tune. Here is my shop-floor ranking.

MHD for Stage 1-2, BM3 for Everything Past

MHD is the budget champion. At $350 for the B58 license plus the cable, you get phone-based flashing, a solid library of off-the-shelf maps, and a tuner platform that runs clean for 99 percent of Stage 1 and Stage 2 daily drivers. If you are staying on the stock turbo forever, MHD is the answer. Period.

The moment you start talking about hybrid turbos, port injection, E85, or custom dyno tunes, Bootmod3 pulls ahead. BM3 licenses at $595 for the B58 - more expensive, but you get 30-second flash times (versus 8-10 minutes on MHD), cloud-based map storage, a built-in map editor that lets your tuner push revisions directly to your car, live 4-map switching via the steering wheel buttons, and the most complete tuner network in the B58 world. Motiv, Wedge Performance, Paul Johnson, FiltaTune, and Bend Calibration all tune BM3 as their primary platform. The Supra community is 95 percent BM3, and since the Supra community leads on big-single data, going BM3 means you inherit their map library. Every flagship tuner I trust tunes BM3. Only about half of them also tune MHD.

My rule - MHD if you are staying Stage 2 and under, BM3 if you plan to ever install a hybrid or single. Do not buy MHD now and plan to switch to BM3 later. You will burn $350 and rebuy $595 a year from now when your hybrid arrives.

JB4 and EcuTek - Niche but Real

JB4 at $550 plus tune is a piggyback - it intercepts sensor signals instead of reflashing the DME. Its ceiling is lower than a flash (roughly Stage 1+ power), but it installs without touching the DME, which matters if your car is leased, still under warranty, or you need to revert to stock quickly for service visits. I install a JB4 maybe twice a year these days, almost exclusively on leased M340is.

EcuTek is the opposite - it is what professional tuners use in the dyno room when BM3 does not expose the table they need. At $700+ per license plus required shop access, it is not a DIY platform. You will encounter it if you go to Motiv or Bend Calibration for a dyno session on a big-single car. Do not buy EcuTek unless a tuner tells you to.

Tier 1 Hybrids - Pure 600, VTT GC, and the 600 WHP Class

Hybrids keep the factory turbo housing and replace the internals - new compressor wheel, new turbine wheel, upgraded bearings, sometimes a ported housing. The beauty of a hybrid is that it bolts in where the stock turbo was, uses the stock exhaust manifold, the stock oil lines, the stock coolant connections, and the stock downpipe. Install time in my shop is 8-12 hours. Cost for the turbo itself is $1,500-$3,500. This is where 80 percent of B58 turbo upgrades live, and for good reason - it is the cleanest cost-to-power ratio in the B58 ecosystem.

Pure 600 and Pure 650 for F-Series Gen 1

Pure Turbos in Denver has been the benchmark hybrid builder for BMW since the N54 days. Their Pure 600 for Gen 1 B58 is $1,495 and makes a reliable 550-580 whp on E30 with supporting mods. The Pure 650 is the same turbo with a slightly more aggressive compressor wheel, priced around $1,895, rated for 580-600 whp. For a Gen 1 F30 340i or F22 M240i owner who wants the cleanest, most factory-feeling upgrade, Pure 600 is the pick. It spools identically to the stock turbo, runs on off-the-shelf BM3 maps, and has zero reliability asterisks.

VTT GC - The Spool Champion

Vargas Turbo Technology is the other name you will see repeatedly. Their VTT B58 GC is a $2,495 hybrid with an all-new casting rather than a reworked OEM housing. What VTT owns is spool - the GC spools as fast as the stock turbo and makes 590-600 whp. If you hate turbo lag and want the hybrid that feels most like a bigger stock turbo, VTT GC is it. It is also my recommendation for AWD cars (xDrive M340i, X3 M40i, X4 M40i) because the fast spool translates to cleaner AWD launches.

The early VTT GC had a well-documented boost creep issue with the wastegate flapper being slightly undersized. VTT revised this with a 2.4cm wastegate opening on production runs from 2023 onward, and the current production batches are clean. If you buy a used VTT GC, verify the wastegate revision. If you buy new direct from VTT, it is already fixed.

TTE580 for the Euro Buyer

The Turbo Technics Europe TTE580 at roughly $2,650 is the German equivalent to a Pure 600. Fast spool, 550+ whp claim, and it is the easiest hybrid to buy in the EU where Pure and VTT have longer shipping times. Performance-wise it sits between Pure 600 and VTT GC. I install it about 10 percent of the time in my shop, almost always on customers who had it shipped in from Germany.

Tier 2 Hybrids - Pure 800, Pure 850, VTT GC+, Pure 900

This is where hybrids push into the 650-750 whp range and the fueling conversation turns into a fueling war. Every turbo in this tier needs, without exception - Dorch DS15 or Stage 2 HPFP, Fuel-It or Burger Motorsports port injection, Walbro 525 LPFP, E50 or E85 fuel, xHP flashed transmission, and a custom dyno tune. Do not let a shop sell you one of these turbos without also quoting the supporting fueling. If they do, find a different shop.

Pure 800 - F-Series Workhorse

The Pure 800 at $2,495 for Gen 1 F-series and $2,500-$2,995 for Gen 2 G-series is the turbo I have installed more than any other B58 hybrid. It spools around 3,400 rpm, makes 560-586 whp on pump-blend, and has been dyno-proven at 734 whp on E85 with full bolt-ons on the old F30 335i platform (which uses the same turbo family). This is the turbo for an enthusiast who wants real big-boy power without crossing into single-turbo money. My Stage 2 hybrid shop build comes in around $11,000-$14,000 fully installed with PI and HPFP, and that gets you 700+ whp on E50.

Pure 850 - The Hybrid Ceiling

Pure 850 at $3,295 is the biggest hybrid Pure makes, and it represents the edge of what a factory-housing hybrid can do before the exhaust side becomes the bottleneck. Rated at 700+ whp. I pull roughly 710-740 whp out of them in my shop on full E85 with port injection and a custom Motiv flash. Beyond that the turbine housing chokes. If you want 750+ whp on the stock housing, Pure 850 is the turbo. If you want more than that, stop shopping hybrids and move to singles.

VTT GC+ - The 850 WHP Claim

VTT GC+ at $2,995 is VTT's biggest hybrid, and they have dyno-proven 850 whp and 893 wtq on E50 with full supporting mods. That is the highest dyno number any hybrid has ever hit that I have verified. It is also a big-boy turbo - the spool is a few hundred rpm later than the base GC, which is why I usually recommend Pure 850 over GC+ for daily drivers and GC+ over Pure 850 for track cars. They are both on the bleeding edge of what a hybrid can do. I install them about equally.

Pure 900 - Gen 2 G-Series Flagship Hybrid

Pure 900 at around $3,495 is the newest hybrid in the Pure lineup, released 2024-2025, billet compressor wheel, VSR-balanced. It is listed at 800+ whp and the G-series version ships with updated wastegate hardware that finally beats the old boost creep complaints for good. If you are building a G-series car today (M340i, M440i, M240i, Z4 M40i) and you want the biggest hybrid that will not cross into single-turbo complexity, Pure 900 is the answer. I have not personally installed 100 of these yet - it is too new - but the 30 or so I have done have been dead reliable at 780-820 whp on E85.

Big Singles on the Stock Block - 800 to 1000 WHP

When you need more than what a hybrid can deliver, you move to an external single turbo. A single kit replaces the factory exhaust manifold, the factory turbo, the factory downpipe, and usually the factory heat shield. Most singles are top-mount (sitting high in the engine bay behind the head) with some bottom-mount options for specific chassis. Install time jumps from 8-12 hours to 20-30 hours. Cost jumps from $3,000 to $7,000-$12,000 for the kit alone, plus $3,000-$5,000 in labor, plus the mandatory fueling package.

JNC Manifold Plus Precision 6870 - Best Value Single

This is the combo the Supra community arrived at after three years of big-single experimentation, and it has crossed over to BMW builds in the last 18 months. JNC sells their top-mount manifold for roughly $1,200, bolt on a Precision 6870 NG turbo ($3,500-$4,000), and you have a $4,799 complete kit that will make 800-1,000 whp on E85 with proper fueling. Compared to a full turnkey kit at $8,000-$10,000, JNC plus Precision saves you roughly $4,000 for identical power.

Fitment - JNC makes both a 4-port BMW version and a 6-port Supra/late-G-series version. Firewall clearance on a 4-port BMW with JNC is tighter than on a Supra - some F22 and F30 customers report needing to relocate the brake booster line, but the fit is doable. For a G42 M240i with the 6-port head, it drops in.

Doc Race - The OG Top-Mount

Doc Race has been making B58 top-mount kits longer than anyone. Their bare kit (manifold, downpipe, hardware, no turbo) is $4,200. Add a Precision 6466 for 800-900 whp or a Precision 6766 for 900-1,000+ whp, total around $7,500-$8,500. Build quality on a Doc Race kit is better than anything in the price range - they were the first shop to dyno a B58 past 1,000 whp, and they own the blueprint on stock-block singles. My recommendation for customers who want the Supra-level engineering on a BMW.

Spool Performance Stage 2 Single

Spool Performance in Australia makes a different kind of single kit focused on OEM-level reliability. Twin-scroll, divided manifold, V-band connections everywhere, and a dyno-proven 900 whp on E85. Priced around $8,500. Spool's kit is less common in the US market because of shipping cost, but it is the benchmark quality-wise. If you have a budget and you want a single that feels factory, this is it.

BigBoost Garrett G35 - 900 and 1050

BigBoost Turbos makes a Garrett G35-based single - G35-900 for 800-1,000 whp ($7,995) and G35-1050 for 1,000-1,200 whp ($8,495, built motor required). Garrett's G35 family is dual-ball-bearing, spools faster than an equivalent Precision, and is the quietest single-turbo kit I have installed. The downside is Garrett pricing - you pay roughly 10-15 percent premium over Precision for equivalent power.

Big Singles on a Built Motor - 900 to 1200+ WHP

Above 800 whp I recommend building the motor. Above 1,000 whp I require building the motor if you want the car to last. Built-motor B58 means CP or Carrillo connecting rods, JE or CP pistons with stronger ring lands, ARP head studs, ARP main studs, and sometimes ARP rod bolts. Parts cost is $7,000-$9,000; labor is another $4,000-$6,000. You are looking at $12,000-$15,000 in engine work before the turbo, and that is before the dual-pump port injection, built transmission, and built differential that come with it.

Vargas VTT-FAB 6-Port - Halo Build

Vargas's own big-single kit at $10,582 is the halo single for the 6-port head. It uses a Precision Next Gen turbo in either 6870 or 7170 spec, cast divided twin-scroll manifold, external wastegate with screamer pipes optional, and it is dyno-proven at 1,000+ whp on built-motor Supras and G42 M240is. This is where the Supra community is running 9-second quarter miles. It will do the same on a BMW chassis if you can find the fueling budget.

Precision 6466 and 6766 - The Bigger Brothers

If you are already on a Doc Race or JNC manifold and you want more than a 6870 delivers, step up to a Precision 6466 (1,000 whp capable) or 6766 (1,100-1,200 whp capable). Add $500-$800 to your turbo budget. These require built motors, dual-pump port injection, and a built ZF transmission to use the power on the ground.

KLM Race and ETS 6-Port NEXT GEN - Pure Race

KLM Race and ETS both sell 6-port Supra kits that cross over to BMWs with 6-port heads. KLM at $10,232 and ETS NEXT GEN at $10,800 are the kits you see in drag Supras running 8-second quarter miles. They include external wastegates, divided twin-scroll manifolds, screamer pipe options, and race-grade V-band connections throughout. If you are building for the quarter mile or a road course with a full cage, this is the tier.

Supra Community Crossover - What Bolts to a BMW

The Toyota GR Supra MKV A90/A91 uses the same B58 engine BMW builds, often 6-port variants after 2022. The Supra enthusiast community races more often, dynos more often, and runs bigger power more often than the equivalent BMW community. As a result, the Supra aftermarket is two to three years ahead on big-single turbo development. Every kit I mentioned above - JNC, KLM, ETS, Vargas VTT-FAB, Doc Race, BigBoost, Spool - was developed on a Supra first and then ported to BMW platforms.

What bolts directly - most Supra kits will bolt to a 6-port BMW (G42 M240i 2022+, late-LCI M340i and M440i) with factory hardware. Firewall clearance is the main variable to verify - some Supra kits assume Supra engine bay geometry and need brake booster line relocation or a different downpipe on a BMW. For 4-port BMW chassis (most F-series and early G-series), you need the 4-port manifold variant if the kit offers one, or a BMW-specific kit like Doc Race.

Going the other direction - the Supra community also lifts BMW-specific hybrids like Pure 850 and VTT GC+ into their cars, because those hybrids use factory BMW turbo mounting bolts and the Supra's engine bay accommodates them with minor routing changes. It is genuinely a two-way street. The reason SERP articles do not mention Supra data is that those articles are lazy. Read the SupraMKV 6-port big turbo thread before you buy anything over $5,000 and you will learn more than any BMW-only source will teach you.

The ZF 8HP51 Transmission Ceiling

Every B58-equipped BMW runs a ZF 8HP50 or 8HP51 eight-speed automatic transmission, which is rated by ZF for 500 Nm of input torque (369 lb-ft). Every owner of a tuned B58 needs to know this number and what it means. Past 550 whp sustained, the C and E clutch packs inside the transmission begin slipping, hub splines wear, and eventually the transmission either fault-codes out or goes into limp mode at wide-open throttle. This is the single most ignored failure mode on tuned B58 cars.

xHP Is Not Optional

xHP Flashtool is a $149 tune that reflashes the ZF TCU. It raises the factory torque limit, revises shift points, reduces torque-converter slip, and on aggressive profiles adds flat-foot shifting. Every tuned B58 needs xHP. Period. I do not install an engine flash without installing an xHP flash on the same day. Without xHP, the transmission will throw fault codes within weeks on any Stage 2 or higher car. With xHP, the factory clutch packs live safely to about 550 whp.

When You Need Built Internals

Above 550 whp sustained, plan on a transmission rebuild. Spool Performance Stage 2 valve body plus uprated clutch packs is the benchmark - $3,000-$4,000 in parts plus $1,000-$2,000 in labor, and it takes the transmission ceiling out to 1,000 lb-ft of torque. Some shops also upgrade the torque converter for big-single applications.

This is why my tier table shows the Pure 600 build at $8,500 (hybrid + PI + Walbro + xHP, no transmission build) and the Pure 850 build at $14,000 (everything above plus a transmission build), and why the 900 whp stock-block single build lands around $18,000-$25,000. The transmission is not a line item most first-time buyers budget for, and then they break it at 8,000 miles and add $5,000 to their build cost retroactively.

E85 Conversion and Fuel Strategy

Running E85 unlocks 15-20 percent more power per turbo setup at the cost of fuel logistics. On a Pure 850 hybrid I see 580 whp on pump-blend E30 and 710 whp on straight E85. That is not a trivial gain - it is the difference between a Stage 2 hybrid build and a near-single-turbo build, just by changing the fuel. Every tier 2 hybrid and every big single in this guide assumes E85 capability.

E85 hardware requirements - you need an upgraded LPFP (Walbro 450 minimum, 525 for bigger setups), an upgraded HPFP (Dorch DS15 minimum), port injection past 600 whp, and flex fuel sensing. The Fuel-It flex sensor kit is $349 and lets the DME automatically calibrate ignition timing based on ethanol content, which matters because summer E85 is often E70 and winter E85 is often E83. Without flex sensing, you have to blend manually at every fill-up and hope you are close enough.

Methanol as a Pump-Gas Alternative

If E85 logistics are too much, direct-port methanol injection is the middle ground. A 6-nozzle direct-port kit ($1,200-$1,500) adds roughly 30 octane points to pump gas 93 and delivers charge cooling that rivals E85 without needing a dedicated fuel tank. I run this setup on customer cars that daily-drive hard. Hybrids like Pure 800 and VTT GC can make 650 whp on 93 plus direct-port meth, which covers most street builds without an ethanol station within 30 miles.

Supporting Mods by Power Tier

Every turbo tier requires a specific set of supporting mods. Skip any item on this list and you are leaving power on the table or creating a failure point. Here is what I install in order per tier.

Stage 1 (400-420 whp)

• MHD Super tune or BM3 license, 93 octane map
• Fresh spark plugs one heat range colder (NGK 97506 at 0.022")
• xHP transmission flash

Stage 2 (440-470 whp)

• All of Stage 1
• Catted or catless downpipe (VRSF, MHD, CG Precision, Active Autowerke)
• Cold air intake (Eventuri if budget, BMS Competition if value, aFe drop-in for minimum cost)
• Aluminum charge pipe (Palenon, VRSF, CSF)

Stage 2+ / Hybrid Ready (500-560 whp)

• All of Stage 2
• CSF heat exchanger or FMIC (VRSF, Wagner, CSF)
• LPFP Stage 2 (Fuel-It or Palenon Walbro 450)
• E30 blend capability or direct-port methanol
• Dorch DS15 HPFP by the 550 whp mark
• Upgraded engine mounts (Condor, Cool Performance)

Hybrid Turbo (600-750 whp)

• All of Stage 2+
• Dorch DS15 or Stage 2 HPFP
• Port injection kit (Fuel-It 6-injector or Burger Motorsports)
• LPFP Stage 3 (Walbro 525)
• Metal oil filter housing (Burger Motorsports or Tys Autoworks)
• Transmission Stage 2 valve body or clutch pack by 650 whp
• Driveshaft inspection (stock is rated ~500 wtq)

Big Single 800-1000 WHP

• All of the above
• Built long block (CP/Carrillo rods, JE/CP pistons, ARP hardware)
• Built transmission (Spool Stage 2 kit)
• Dual-pump LPFP
• Race intercooler (ETS, CSF top-mount CAC)
• Built differential (stock electronic LSD grenades over 800 wtq)
• Cage, seats, belts for track use

Chassis Crossover - Which B58 You Own Matters

Every B58 shares the same fundamental engine, but the chassis it sits in changes supporting mod selection. Here is the quick reference I use when a customer rolls in.

G20 M340i - The Default Tuning Target

The G20 M340i (2019-present) is the most-tuned B58 chassis in North America. Gen 2 B58TU engine, ZF 8HP51, xDrive AWD is the common trim. The rear-drive G20 340i (not M-badged) uses the same engine at slightly lower state of tune. Every hybrid and big-single kit in this article has G20 fitment. For a customer building a G20 M340i today, my default recommendation is Pure 850 on Gen 2 fueling for a 700 whp daily driver. For full M3 G80 killer energy, JNC plus PTE 6870 on a built fueling system lands you at 850+ whp. Read our M340i review for the factory context and the 340i mods guide for pre-turbo bolt-ons.

M240i G42 - The 6-Port Gift

The 2022+ G42 M240i got the 6-port head on Gen 3 B58TU2. That means every 6-port Supra turbo kit (ETS, KLM Race, Vargas VTT-FAB, Pure 900 6-port) bolts in. If you want the cheapest path to a big single on a BMW in 2026, a G42 M240i with a JNC 6-port manifold and a Precision 6870 is the answer - you inherit Supra kit prices rather than BMW kit prices.

M440i G22 and M540i G30

The M440i G22 uses the same drivetrain as the M340i - Gen 2 B58TU or late Gen 3 B58TU2 depending on build date. Identical tuning path. The M540i G30 also runs the B58 in early builds (pre-facelift), and while the engine is identical, the G30 has more supporting mods complexity (larger intercooler routing, different downpipe geometry). Expect 10 percent more shop labor on a G30 for the same turbo install.

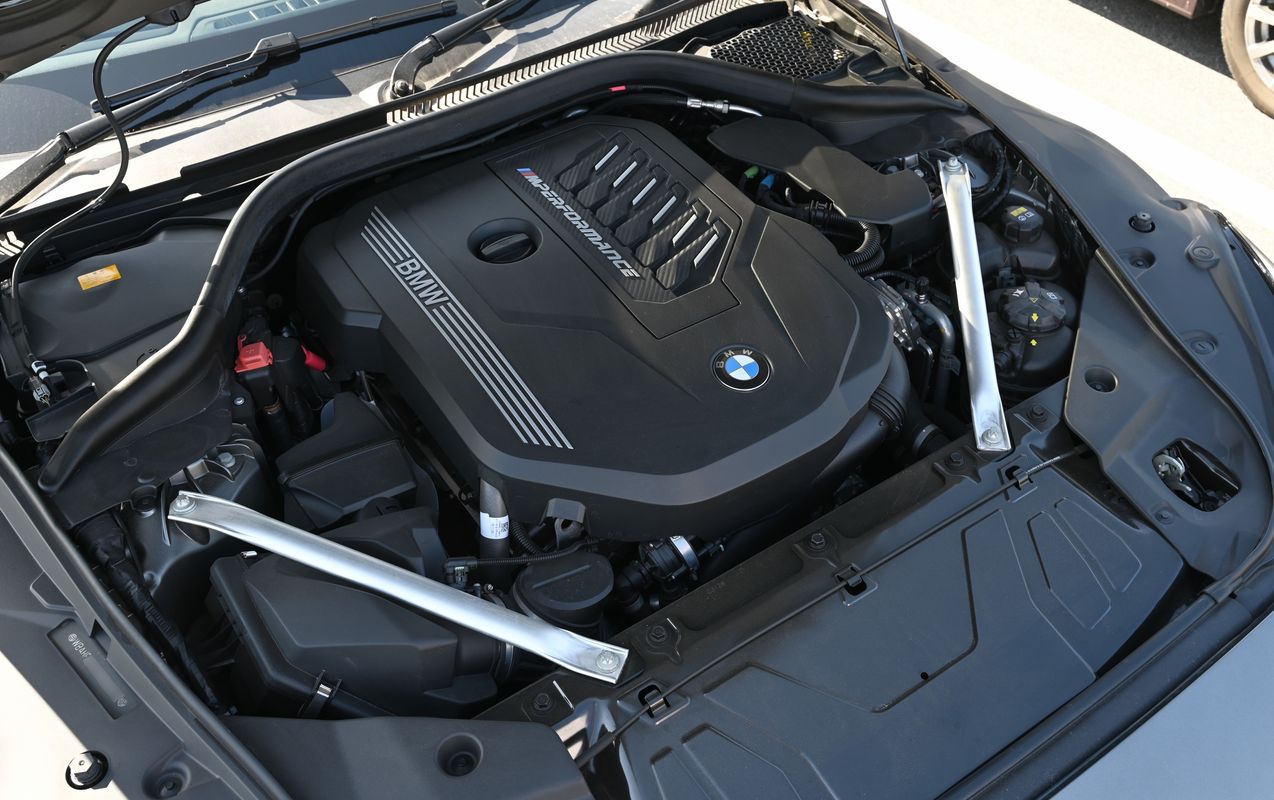

Z4 M40i G29 and X3/X4 M40i G01/G02

Z4 M40i, X3 M40i, X4 M40i all run the B58. The Z4 shares most mounting with the Supra (they share a platform), which makes Supra kits a cleaner fit on a Z4 than on any BMW. The SUV variants (X3 M40i, X4 M40i) have tighter engine bay clearance up top and usually work better with bottom-mount singles if you are going that route. For hybrids, all four chassis are identical to a G20 install.

F-Series Gen 1 - Don't Skip the Fueling

F30 340i, F22 M240i, F32 440i, F36 440i Gran Coupe - all Gen 1 B58, 4-port head, weaker HPFP, 2-piece timing chain. These are the chassis where I see the most fueling shortcuts cause the most damage. A Pure 600 or VTT GC on a Gen 1 car is a straightforward build; anything past that is a Dorch DS15 build or the turbo will underperform. Read our guide to what BMWs have the B58 for the complete chassis list with build years.

Realistic Power Expectations at Each Tier

This is the table I walk every customer through before we price a build. Dyno numbers are wheel horsepower on a Mustang chassis dyno - other dyno types read slightly higher or lower but the relative gaps stay the same.

Numbers assume full supporting mods per tier. Skipping port injection on a Pure 850 E85 build will cost you 50-80 whp at the top. Skipping xHP on a transmission-heavy build will cost you 30 whp in shift-event timing pulls. The table assumes proper support.

What Goes Wrong at High Power

Every tuned B58 has a known failure mode map, and I repair these in my shop weekly. Plan for them in your build budget or they will ambush you later.

Oil Filter Housing Gasket Crack

The plastic OFHG housing cracks under sustained high load above about 500 whp. The gasket itself is not the failure - the brittle coolant vent hose that runs next to it is. I upgrade to a Burger Motorsports metal OFHG ($500-$800 DIY, $1,500-$2,500 shop) on every hybrid and single build. If you are at Stage 2+ for more than a year, expect to do this job proactively.

PCV Diaphragm and Valve Cover Gasket

B58 PCV diaphragm fails progressively under boost, pulling oil into the intake. Symptoms are oily charge pipes, fouled spark plugs, and elevated fuel trims. Refresh the valve cover gasket with a new PCV diaphragm every 60,000 miles on a tuned car, or proactively at any turbo upgrade install.

Plastic Charge Pipe at Stage 2 Boost

The OEM plastic charge pipe blows off at Stage 2 boost levels (15+ psi). Aluminum upgrade is $150 and takes 45 minutes. This is the first mod I do on any car heading past Stage 1.

Boost Creep on Early Hybrids

Early VTT GC and early Pure 800 had wastegate flappers that were undersized for the turbine housing airflow. Current production (2023+) Pure 800 and GC+ revisions fixed this with ported housings and larger wastegate openings. If you are buying used hybrid, verify the production date and check the wastegate port.

HPFP Starve at 450-500 WHP

Covered earlier. Gen 1 HPFP walls at 450 whp pump, Gen 2 at 500 whp. Dorch DS15 by 550 whp, Dorch Stage 2 by 650 whp, port injection past 600 whp.

Exhaust Manifold Cracking at 500+ WHP Catless

Rare on stock manifolds, more common with catless downpipes at 500+ whp because the exhaust temperatures climb. Walton Motorsport makes an aftermarket replacement manifold for Gen 1 and Gen 2. For big-single builds this is moot because you replace the manifold anyway.

Electronic LSD Grenade at 600+ WTQ

The factory electronic LSD in M340i and M440i xDrive cars fails at roughly 600 wtq sustained. If you are building past 600 whp on an AWD car, plan for a Wavetrac or Drexler upgraded LSD. Rear-drive cars are slightly more tolerant because the diff is different, but still plan for an upgrade above 700 whp.

For a deeper dive into the common B58 maintenance and reliability issues that affect tuned cars, read our dedicated guide to BMW B58 common problems.

Coming From an N54 or N55 Build

If your last BMW was an N54 335i or an N55 M235i, the B58 is a different animal. The N54 was a fueling-easy engine (direct injection plus twin low-pressure turbos, port injection support was aftermarket but simple) with a reputation for HPFP failures at stock power. The B58 flips that - the HPFP is more robust at stock, but fueling is harder to upgrade because everything is integrated and there is less aftermarket DIY support than the N54 world built up over a decade.

Block strength goes the other direction. The N54 was good to roughly 650 whp on stock internals, the N55 to maybe 550 whp, and the B58 to 800 whp. So if you are used to building an N54 to 600 whp on stock internals and expecting the B58 to behave the same at 600 whp, you are underutilizing the block. The B58 should be aimed higher if your budget allows. For a direct engine comparison, see our N54 vs N55 vs B58 breakdown.

If you want to see what the equivalent turbo tier looks like on the older engines, check our best turbo upgrade for BMW N54 and best turbo upgrade for BMW N55 flagship guides. The approach (Pure, VTT, custom tune path) is similar; the parts and the fueling ceilings are not.

Frequently Asked B58 Turbo Questions

Which turbo upgrade is best for a BMW M340i B58?

For a Gen 2 G20 M340i daily driver, Pure 850 on E85 with port injection is my most-installed recommendation - it makes 700-740 whp with factory-like spool and bolt-in install. For a G42 M240i with the 6-port head, JNC manifold plus Precision 6870 gives you the best value path to 800+ whp single-turbo power for under $20,000 turnkey. For a G20 M340i track car, Pure 900 or VTT GC+ edges out Pure 850 by 40-60 whp at the cost of slightly later spool.

How much power can the B58 stock turbo handle?

Gen 1 B58 stock turbo maxes around 450 whp on 93 octane with Stage 2 bolt-ons, and up to 500 whp with methanol or E30. Gen 2 B58TU stock turbo reaches 500-510 whp on 93 octane Stage 2 and 530-540 whp with meth or E30 blend. Gen 3 B58TU2 pushes slightly higher still at around 510-530 whp on pump. The stock twin-scroll turbo is underrated and will make real power before you ever replace it.

What is the difference between Pure 800 and VTT GC

Pure 800 is a bigger turbo with later spool (around 3,400 rpm) and higher peak power potential (700+ whp on E85). VTT GC is a smaller hybrid with factory-like spool and a lower ceiling (590-600 whp). Pure 800 wins when you want maximum hybrid power. VTT GC wins when you want the fastest response and the most factory-like driving feel. Pure 850 splits the difference - bigger than GC, slightly faster spool than Pure 800.

Can I run a B58 big turbo on the stock engine

Yes, to about 800 whp safely. The closed-deck forged-crank B58 block has been tested to 900+ whp on stock internals, but above 800 whp the piston ring lands become the weak point over repeated pulls. My rule - build the motor at 800 whp target power for longevity, not survival. For one-off dyno events 900 whp on stock internals is survivable. For a daily-driven 900 whp build, go forged.

Do I need port injection for a B58 hybrid turbo

Below 600 whp, no. Above 600 whp on ethanol, yes, mandatory. Direct injectors cannot atomize enough fuel past 600 whp regardless of rail pressure. Port injection adds a second set of injectors upstream in the intake runners that fire in the cold-valve window. Fuel-It 6-injector kit is the gold standard at $999-$1,249. Burger Motorsports kit is a cheaper alternative.

How much whp will a B58 make with an upgraded turbo

Depends on turbo and supporting mods. Hybrid tier on E85 with proper fueling - 600-750 whp. Big single on stock block with proper fueling - 800-950 whp. Big single on built motor with race fueling - 1,000-1,300 whp. On pump 93 with no ethanol or meth, cut those numbers by roughly 20 percent because the engine will pull timing to stay safe.

Is the B58 gen 1 or gen 2 better for big power

Gen 2 B58TU handles more power on stock internals thanks to the stronger HPFP and revised head flow. Gen 1 tops out on stock fueling at around 450 whp; Gen 2 at 500 whp. Above the fueling upgrade both engines behave identically - same block, same crank, same fundamental geometry. Gen 2 is easier to push; Gen 1 is not scary, it just hits its fueling wall sooner.

What turbo is best for a Supra A90 B58

Same options as BMW plus the 6-port-specific kits. JNC 6-port manifold plus Precision 6870 is the best-value single. Vargas VTT-FAB is the halo single. Pure 900 6-port is the bolt-in single alternative at lower cost. The Supra community is 2-3 years ahead of BMW on big-single development, so if you own a Supra you have more options, not fewer.

How much does a B58 big turbo kit cost in 2026

Bare manifold plus turbo combos start around $4,800 (JNC plus PTE 6870). Complete turnkey kits range $7,500-$10,800 for the hardware alone. Add $3,000-$5,000 in labor, $3,500 in fueling (Dorch DI Complete), $1,500 in xHP plus transmission Stage 2 prep, and $2,000 in supporting bolt-ons for a realistic $18,000-$25,000 total on a stock block. Built motor adds $12,000-$15,000 more.

Will the ZF 8HP transmission handle 700 whp on a B58

Not reliably. Factory ZF 8HP51 is rated 500 Nm (369 lb-ft) by ZF, and clutch pack degradation starts around 550 whp sustained. xHP flash extends the safe ceiling to maybe 600 whp short-term. For 700 whp you want built internals - Spool Performance Stage 2 valve body and uprated clutch packs, roughly $4,500-$6,000 installed. Skip this step and you will break the transmission within a year of tuned driving.

Is MHD or Bootmod3 better for a tuned B58

MHD is better for Stage 1 and Stage 2 budget builds ($350 vs $595). Bootmod3 is better for hybrid and single turbo builds because of faster flash times, live 4-map switching, cloud-based tune revisions, and a bigger professional tuner network. My rule - MHD for Stage 2 and under, BM3 for anything bigger. Do not buy MHD now intending to switch to BM3 later; you will burn the MHD license.

What fuel pump upgrade do I need for 600 whp on the B58

LPFP Stage 2 (Walbro 450) at minimum, plus Dorch DS15 Stage 1.5 HPFP. For Gen 1 B58 cars this is mandatory at 600 whp; for Gen 2 it is recommended and becomes mandatory at 650 whp. On E85 add port injection (Fuel-It 6-injector) above 600 whp. The Dorch DI Complete bundle ($3,500) combines all three if you want one purchase order.

Does a B58 hybrid turbo have boost creep

Early Pure 800 and VTT GC had documented boost creep due to undersized wastegate flappers. Production revisions from 2023 onward (Pure 850, Pure 900, VTT GC+) have ported housings and larger wastegate openings that eliminate the creep. Current production hybrids are clean. If you are buying used, verify the production date and check the wastegate housing for the revised geometry.

What supporting mods do I need for a B58 hybrid turbo

At minimum - downpipe, aluminum charge pipe, cold air intake, upgraded LPFP (Walbro 450), upgraded HPFP (Dorch DS15), xHP transmission flash, and a custom dyno tune. Above 650 whp add port injection, Walbro 525 LPFP, Dorch Stage 2 HPFP, and a transmission Stage 2 build. See the Supporting Mods section above for the full checklist by power tier.

Can a Supra B58 turbo kit fit on a BMW M240i

Yes, if both cars have the same head geometry. The 2022+ G42 M240i has the 6-port head and most Supra 6-port kits (ETS, KLM Race, Vargas VTT-FAB, Pure 900 6-port, JNC 6-port) will bolt on with factory hardware. Firewall clearance is the main variable - verify with the kit manufacturer for G42 fitment. For 4-port BMWs (most F-series and early G-series), you need the 4-port version of the kit if offered, or a BMW-specific kit like Doc Race or BigBoost.

Final Verdict by Chassis and Goal

After 5,000 words, here is how I actually advise customers. Pick the row that describes you, and that is your build.

I want 500 whp with warranty-like reliability

Stock turbo, BM3 Stage 2+ with E30 blend, Fuel-It Stage 2 LPFP, Dorch DS15 HPFP proactive, xHP flash, downpipe, intake, aluminum charge pipe. Total around $5,500. Makes 490-520 whp. Reliable to 100,000 miles with 5,000-mile oil changes and annual plug swaps. Best tune-for-money ratio in the entire B58 catalog.

I want 600-650 whp and factory spool

VTT GC or Pure 800 hybrid. Full Stage 2+ supporting mods plus Dorch DS15, Fuel-It Stage 2 LPFP, E30 or direct-port meth, xHP flash. Budget $11,000-$14,000 turnkey. Makes 620-680 whp on E30, spools factory-feel.

I want maximum hybrid, 700+ whp

Pure 850 or VTT GC+ hybrid on E85 with Fuel-It port injection, Walbro 525, Dorch Stage 2 HPFP, xHP flash, transmission Stage 2 clutch packs. Budget $15,000-$18,000 turnkey. Makes 700-740 whp on E85. This is where I would personally land on my own M340i if I owned one today.

I want 800-1000 whp stock block

JNC manifold plus Precision 6870 or Doc Race plus Precision 6766 on stock block, full fueling (Dorch Stage 2, Fuel-It port injection, Walbro 525 dual pump), built transmission (Spool Stage 2), E85 only. Budget $22,000-$28,000 turnkey. Makes 850-980 whp on E85. Stock block survives if you keep it under 900 whp and run 5,000-mile oil intervals.

I am building a race car

Vargas VTT-FAB or KLM Race 6-port kit, Precision 6766 or 7170, built motor (Carrillo rods, CP pistons, ARP hardware), built transmission, built differential, race fuel system with dual pumps, full cage and safety gear. Budget $45,000-$60,000 turnkey for a 1,000+ whp track car. This is where the Supra 8-second drag cars live.

I own a 2015-2019 F-Series Gen 1 BMW

Pure 600 or VTT GC is your hybrid. Add full supporting mods and Dorch DS15 HPFP. Do not chase Pure 800 or GC+ without also upgrading the HPFP to Stage 2 - Gen 1 fueling walls before the turbo does. Around $9,000 turnkey for 580 whp. Reliable, period-correct for the F-chassis aesthetic, and the money spent on fueling carries over if you upgrade turbos later.

I own a 2022+ G42 M240i

Lucky you. The 6-port head opens the full Supra kit catalog. JNC 6-port plus Precision 6870 is the budget big-single, Pure 900 6-port is the bolt-in single, and Vargas VTT-FAB is the halo build. A G42 M240i with a 6-port single kit is the cheapest path to 900 whp on a BMW in 2026.

I own a Supra A90

Same answer as the G42 M240i but with slightly more kit options and a community that is 2-3 years ahead on tuning data. Spend an afternoon on SupraMKV before finalizing your parts list.

Whichever tier you land in, the order of operations matters more than the parts. Fueling first, transmission next, turbo last. Tune platform before you touch hardware. Supporting mods installed before the turbo arrives so the install shop is not waiting on a charge pipe. Dyno tune after everything is bolted up, not before. If you follow that sequence and match your budget to the right tier, a B58 will out-run a stock S55 M3 for less money than a new F97 X3 M. That is the promise of this engine, and the reason I have stopped apologizing for my G20 sitting next to M cars in the paddock. For the broader tuning philosophy, read our BMW tuning 101 primer and the engine comparison if you are deciding which BMW to start the project on in the first place.

Now stop reading and go call your tuner.
